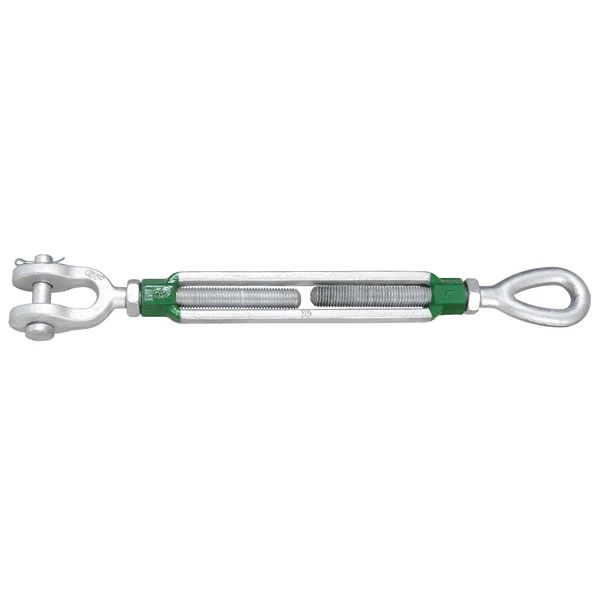

1 / 8 1-1/4" x 18" Van Beest® Jaw & Eye Galvanized Turnbuckle - G-6315
The 1-1/4" x 18" Van Beest® Jaw & Eye Galvanized Turnbuckle - G-6315 is part of our Van Beest Galvanized Jaw & Eye line in the Turnbuckles department. It is rated with a working load limit of 15,200 lbs. Construction: Drop-forged high tensile steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 15,200 lbs
- Length Closed: 32-25/32"
- Length Open: 49-17/32"
- Body Length: 18"
- Diameter: 1-1/4"
- Material: Drop-forged high tensile steel
| SKU | JETBGV114X18-VB |
|---|---|
| Shipping weight | 24.3 lbs |
| Working Load Limit (lbs.) | 15200 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 1-1/4" |
| Length Closed | 32-25/32" |
| Length Open | 49-17/32" |
| Body Length | 18" |
| Jaw Opening | 1-3/4" |
| Turnbuckle Size | 1-1/4" x 18" |
| Pin Size | 1-5/32" |
| Material | Drop-forged high tensile steel |
| Finish | Galvanized |
| Product Weight | 24.3 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Manufacturer Name | Van Beest |
| Brand Part Number | SSGPGO3218 |
| Additional Info | Jaw end fitted with cotter pin |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
