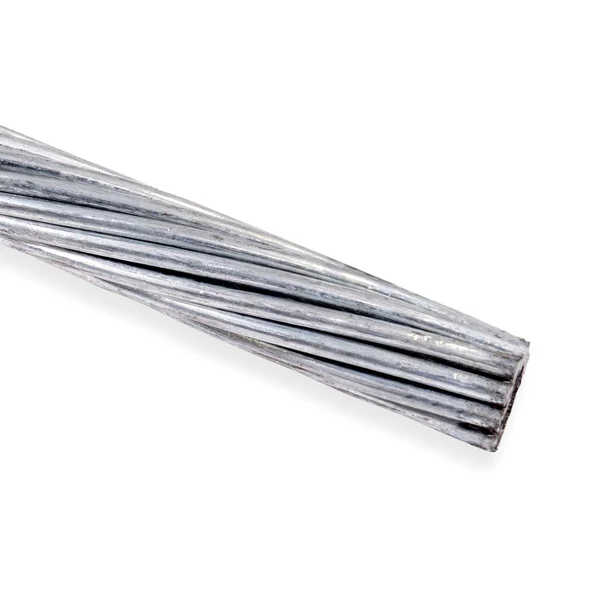

1 / 7 1" 1x19 EHS Galvanized Guy Wire | 5,000 Feet
The 1" 1x19 EHS Galvanized Guy Wire - 5,000 Feet is part of our 1x19 EHS Guy Strand Wire Rope line in the Wire Rope department. It is rated with a break strength of 52.25 tons / 104,500 lbs. and a Grade EHS rating. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 52.25 tons / 104,500 lbs.
- Grade: EHS
- Length: 5,000'
- Wire Rope Diameter: 1"
| SKU | LC119EHSGS1-5000FT |
|---|---|
| Shipping weight | 9,250.01 lbs |
| Assembly Break Strength | 52.25 tons / 104,500 lbs. |
| Grade | EHS |
| Wire Rope Diameter | 1" |
| Length | 5,000' |
| Wire Rope Class | 1x19 |
| Finish | Galvanized |
| Product Weight | 9250 lbs. |
| Weight Per Foot | 1.85 |
| Standards | Meets all requirements of ASTM A475-22 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
