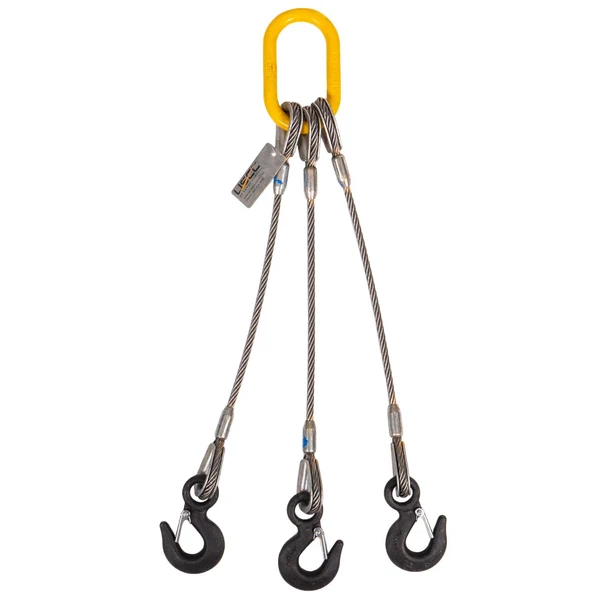

1 / 7 1/2" x 6' 3-Leg Wire Rope Bridle Sling with Eye Hooks
The 1/2" x 6' 3-Leg Wire Rope Bridle Sling with Eye Hooks is part of our 3 Leg Bridle line in the Wire Rope Slings department. It is rated with a Grade EIPS rating. Construction: Bright Steel Wire Rope.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Grade: EIPS
- Length: 6'
- 30 Degree Capacity: 3.8 tons / 7,600 lbs.
- 45 Degree Capacity: 5.4 tons / 10,800 lbs.
- 60 Degree Capacity: 6.6 tons / 13,200 lbs.
- Diameter: 1/2"
| SKU | SW3-12-6 |
|---|---|
| Shipping weight | 37.24 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 3.8 tons / 7,600 lbs. |
| 45 Degree Capacity | 5.4 tons / 10,800 lbs. |
| 60 Degree Capacity | 6.6 tons / 13,200 lbs. |
| Grade | EIPS |
| Diameter | 1/2" |
| Length | 6' |
| Core | IWRC |
| End Fitting | 3 ton carbon steel hook |
| Material | Bright Steel Wire Rope |
| Product Weight | 37.24 lbs. |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Additional Info | 1" master link diameter Rated capacities for basket hitch based on a D/d ratio of 25 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
