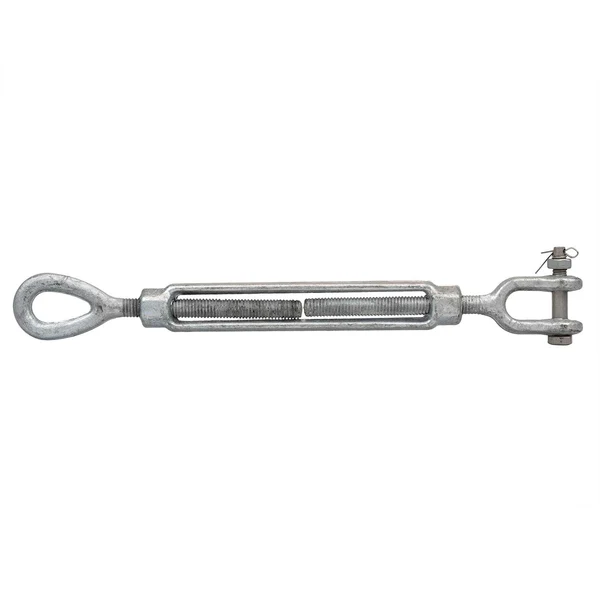

1 / 8 1" x 12" Jaw & Eye Galvanized Turnbuckle
The 1" x 12" Jaw & Eye Galvanized Turnbuckle is part of our Galvanized Jaw & Eye line in the Turnbuckles department. It is rated with a working load limit of 10,000 lbs. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 10,000 lbs
- Length Closed: 26.89"
- Length Open: 38.25"
- Body Length: 12"
- Diameter: 1"
| SKU | JETBGV1X12 |
|---|---|
| Shipping weight | 12 lbs |
| Working Load Limit (lbs.) | 10000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 1" |
| Length Closed | 26.89" |
| Length Open | 38.25" |
| Body Length | 12" |
| Jaw Opening | 1.25 |
| Turnbuckle Size | 1" x 12" |
| Pin Size | 0.88 |
| Finish | Galvanized |
| Product Weight | 11.8 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Additional Info | Jaw end fitted with nut, bolt, and cotter |
