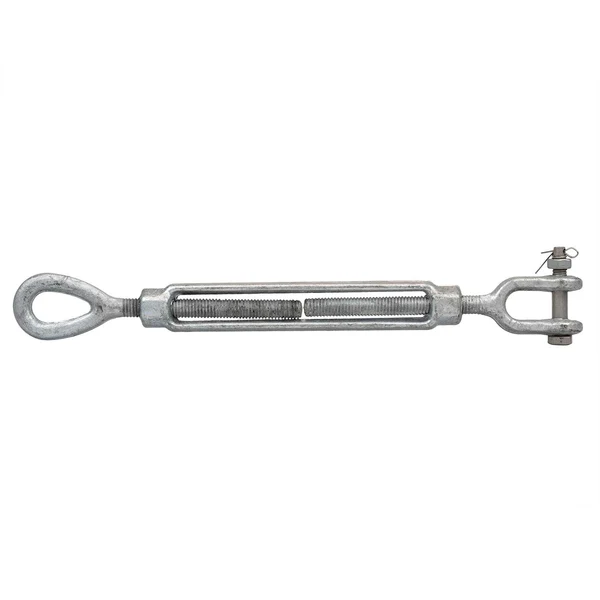

1 / 8 2-1/2" x 24" Crosby® Jaw & Eye Galvanized Turnbuckle - HG-227 | 1032457
The 2-1/2" x 24" Crosby® Jaw & Eye Galvanized Turnbuckle - HG-227 - 1032457 is part of our Crosby Galvanized Jaw & Eye line in the Turnbuckles department. It is rated with a working load limit of 60,000 lbs. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 60,000 lbs
- Length Closed: 58.68"
- Length Open: 82.68"
- Body Length: 24"
- Diameter: 2-1/2"
| SKU | JETBGV212X24-CR |
|---|---|
| Shipping weight | 150 lbs |
| Working Load Limit (lbs.) | 60000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 2-1/2" |
| Length Closed | 58.68" |
| Length Open | 82.68" |
| Body Length | 24" |
| Jaw Opening | 3.06" |
| Turnbuckle Size | 2-1/2" x 24" |
| Pin Size | 2.25" |
| Finish | Galvanized |
| Product Weight | 150 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145 & ASME B30.26. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1032457 |
| Additional Info | Made in America Jaw end fitted with pins & cotters. |
