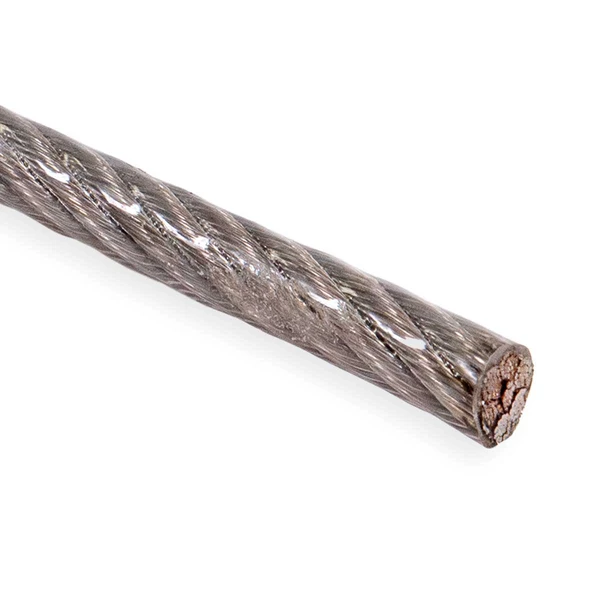

1 / 7 3/16" 7x19 Vinyl-Coated Aircraft Cable - Type 304 Stainless Steel | 250 ft.
The 3/16" 7x19 Vinyl-Coated Aircraft Cable - Type 304 Stainless Steel - 250 ft. is part of our 7x19 Vinyl Coated Stainless Wire Rope line in the Wire Rope department. It is rated with a break strength of 1.85 tons / 3,700 lbs. and a Grade 304 Stainless Steel rating. Construction: clear vinyl (pvc) finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 1.85 tons / 3,700 lbs.
- Grade: 304 Stainless Steel
- Length: 250'
| SKU | 719VCSSAC31614-250FT |
|---|---|
| Shipping weight | 19.25 lbs |
| Assembly Break Strength | 1.85 tons / 3,700 lbs. |
| Rated for Overhead Lifting | Yes |
| Grade | 304 Stainless Steel |
| Wire Rope Diameter | 3/16" Wire Rope / 1/4" With Coating |
| Length | 250' |
| Wire Rope Class | 7x19 |
| Finish | Clear Vinyl (PVC) |
| Product Weight | 19.25 lbs. |
| Weight Per Foot | 0.08 lbs. |
| Standards | Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023 |
| Additional Info | Right Hand Regular Lay Not intended for Aircraft Use |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
