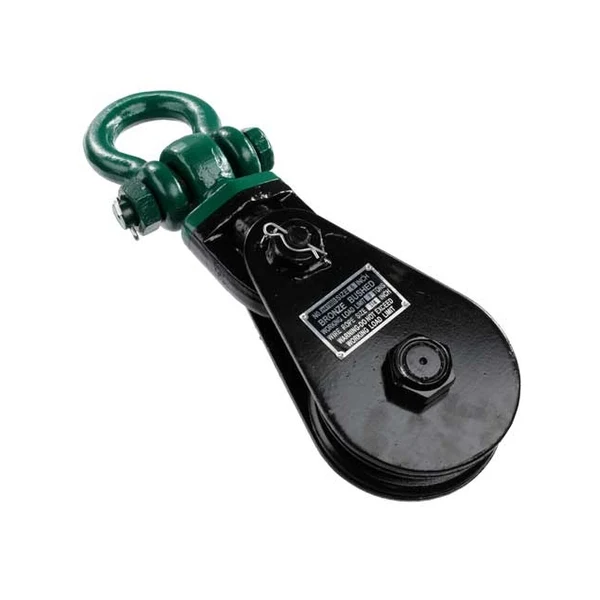

4190 Snatch Block w/ Shackle (3/4" wire x 6" sheave)
$209.99
Working Load Limit16,000 lbs
Assembly Break Strength64,000 lbs.
Mouth Width1.57"
Wire Rope Diameter3/4"
Sheave Diameter6"
In stock — ready to ship
Pay by ACH or wire — invoice emailed
Parcel or LTL freight, all 50 states
The 4190 Snatch Block w/ Shackle (3/4" wire x 6" sheave) is part of our 4190 Snatch Block with Shackle line in the Blocks & Pulleys department. It is rated with a working load limit of 16,000 lbs. and a break strength of 64,000 lbs.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 16,000 lbs
- Assembly Break Strength: 64,000 lbs.
- Mouth Width: 1.57"
- Wire Rope Diameter: 3/4"
- Sheave Diameter: 6"
| SKU | 4190S6 |
|---|---|
| Shipping weight | 29 lbs |
| Working Load Limit (lbs.) | 16000 |
| Assembly Break Strength | 64,000 lbs. |
| Safety Factor | 4:1 |
| Wire Rope Diameter | 3/4" |
| Sheave Diameter | 6" |
| Mouth Width | 1.57" |
| Type | Bronze Bushing |
| Product Weight | 29 lbs. |
| Standards | Meets or exceeds All ASME B30.26 requirements. |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
Unused items in original packaging can be returned within 30 days. See the return policy.
