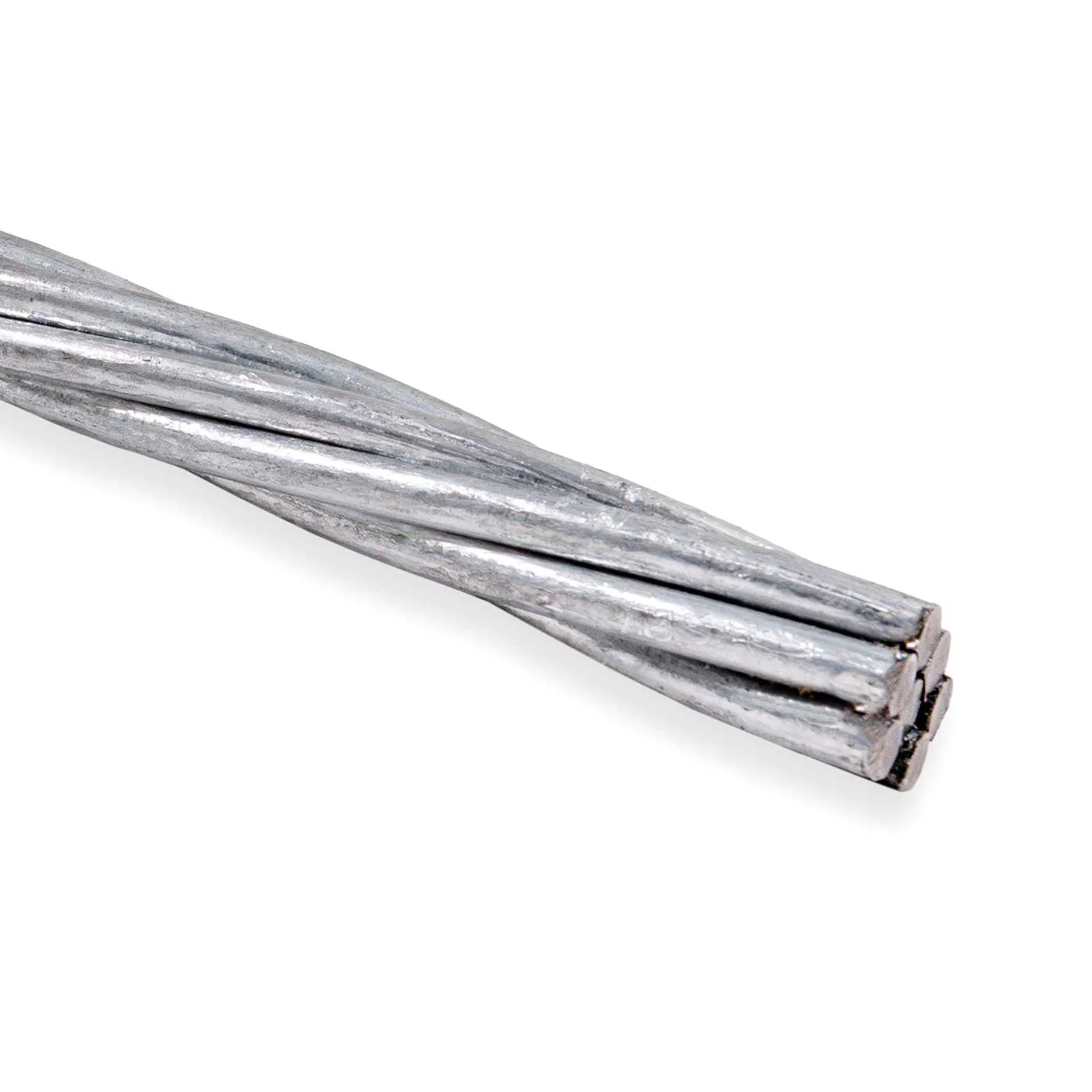

1 / 7 5/16" 1x7 EHS Galvanized Guy Wire | 1,000 ft.
The 5/16" 1x7 EHS Galvanized Guy Wire - 1,000 ft. is part of our 1x7 EHS Guy Strand Wire Rope line in the Wire Rope department. It is rated with a break strength of 5.6 tons / 11,200 lbs. and a Grade EHS rating. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 5.6 tons / 11,200 lbs.
- Grade: EHS
- Length: 1,000'
- Wire Rope Diameter: 5/16"
| SKU | LF17EHSGS516-1000FT |
|---|---|
| Shipping weight | 210 lbs |
| Assembly Break Strength | 5.6 tons / 11,200 lbs. |
| Grade | EHS |
| Wire Rope Diameter | 5/16" |
| Length | 1,000' |
| Wire Rope Class | 1x7 |
| Core | IWRC |
| Finish | Galvanized |
| Product Weight | 210 lbs. |
| Weight Per Foot | 0.225 lbs. |
| Standards | Meets all requirements of ASTM A475-03 |
