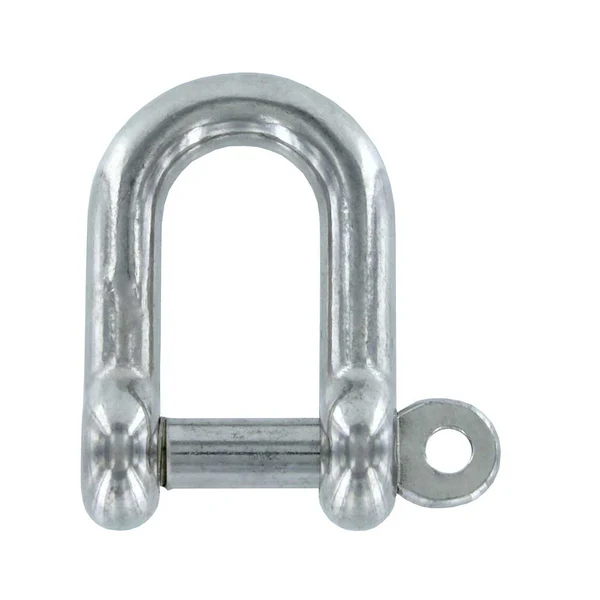

5/32" Captive Pin D Shackle Stainless Steel
The 5/32" Captive Pin D Shackle Stainless Steel is part of our Stainless D Captive Pin Shackles line in the Shackles department. It is rated with a working load limit of 350 lbs. and a Grade 316 Stainless Steel rating. Construction: Stainless Steel.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
Not for overhead lifting. This item is rated for cargo securement only.
At a glance
- Working Load Limit: 350 lbs
- Grade: 316 Stainless Steel
- Mouth Width: 0.34"
- Material: Stainless Steel
| SKU | CPDS532SS |
|---|---|
| Shipping weight | 0.02 lbs |
| Working Load Limit (lbs.) | 350 |
| Rated for Overhead Lifting | No - overhead lifting rated stainless steel options are available by request . |
| Grade | 316 Stainless Steel |
| Inside Height | 0.5" |
| Mouth Width | 0.34" |
| Shackle Size | 5/32" |
| Pin Size | 5/32" |
| Material | Stainless Steel |
| Product Weight | .01 lbs. |
| Brand Part Number | 360S-LK-04 |
