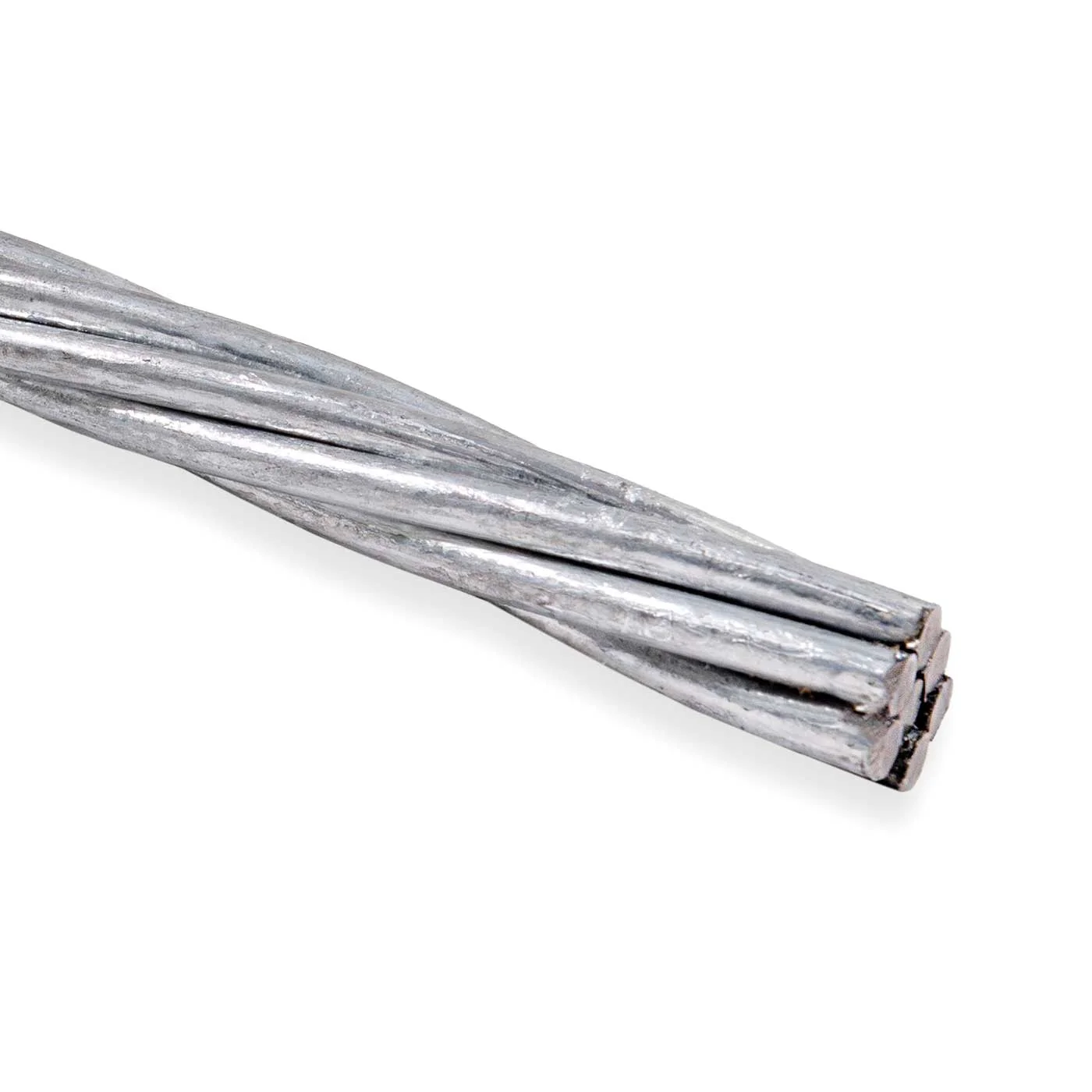

1 / 7 5/8" 1x7 EHS Galvanized Guy Wire | 5,000 ft.
The 5/8" 1x7 EHS Galvanized Guy Wire - 5,000 ft. is part of our 1x7 EHS Guy Strand Wire Rope line in the Wire Rope department. It is rated with a break strength of 21.2 tons / 42,400 lbs. and a Grade EHS rating. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 21.2 tons / 42,400 lbs.
- Grade: EHS
- Length: 5,000'
- Wire Rope Diameter: 5/8"
| SKU | LC17EHSGS58-5000FT |
|---|---|
| Shipping weight | 3,200 lbs |
| Assembly Break Strength | 21.2 tons / 42,400 lbs. |
| Grade | EHS |
| Wire Rope Diameter | 5/8" |
| Length | 5,000' |
| Wire Rope Class | 1x7 |
| Core | IWRC |
| Finish | Galvanized |
| Product Weight | 3,200 lbs. |
| Weight Per Foot | 0.813 lbs. |
| Standards | Meets all requirements of ASTM A475-03 |
