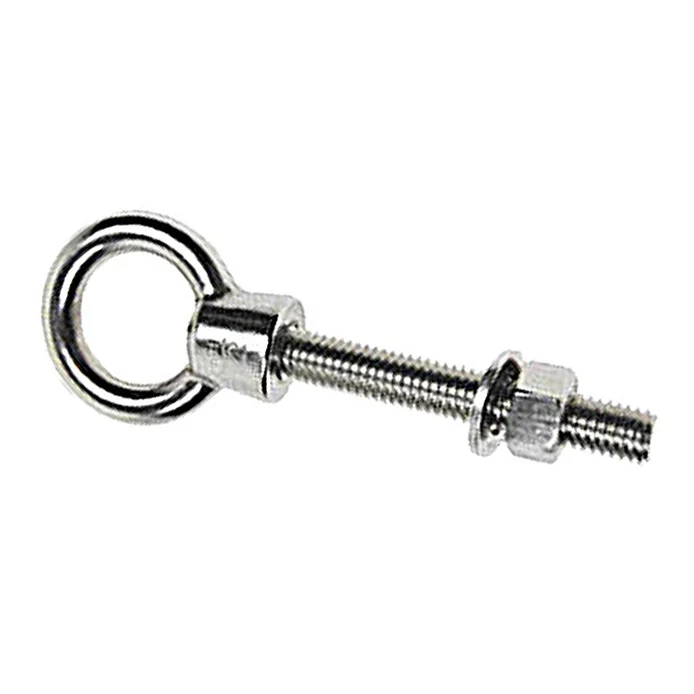

1 / 2 5/8" x 6" Stainless Steel Shoulder Eye Bolts Precision Cast T316
The 5/8" x 6" Stainless Steel Shoulder Eye Bolts Precision Cast T316 is part of our Stainless Shoulder Eye Bolts line in the Eye Bolts department. It is rated with a working load limit of 3,200 lbs., a break strength of 12800 lbs. and a Grade 316 Stainless Steel rating. Construction: Steel.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 3,200 lbs
- Assembly Break Strength: 12800 lbs.
- Grade: 316 Stainless Steel
- Overall Length: 8.83"
- Shank Length: 6"
- Diameter: 5/8"
| SKU | SSSEB58X6 |
|---|---|
| Shipping weight | 1.1 lbs |
| Working Load Limit (lbs.) | 3200 |
| Assembly Break Strength | 12800 lbs. |
| Grade | 316 Stainless Steel |
| Diameter | 5/8" |
| Overall Length | 8.83" |
| Shank Length | 6" |
| Material | Steel |
| Product Weight | 1.1 lbs. |
| Standards | Meets or exceeds ASTM F541 requirements. |
| Additional Info | Overall width: 2.34" |
