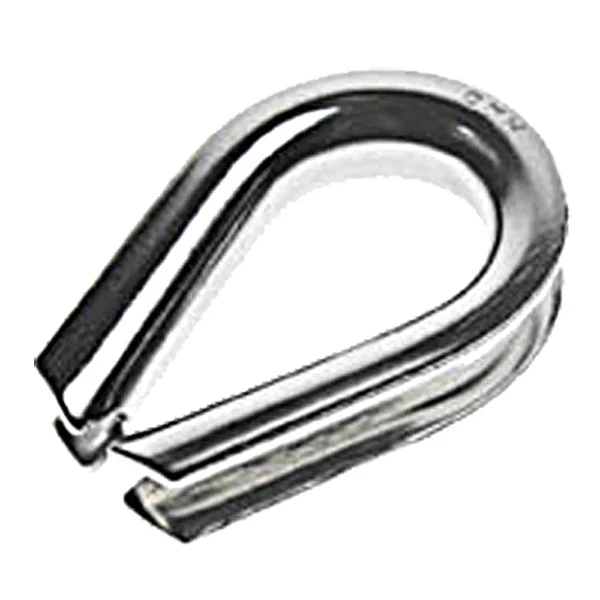

7/8" Heavy Duty Stainless Steel Thimbles | Type 316
The 7/8" Heavy Duty Stainless Steel Thimbles - Type 316 is part of our Heavy Duty Stainless Steel Type 316 line in the Wire Rope Thimbles department. Construction: 316 Stainless Steel.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Inside Width: 2-1/4"
- Inside Length: 4-1/4"
- Wire Rope Diameter: 7/8"
- Material: 316 Stainless Steel
| SKU | SS316USHD78 |
|---|---|
| Shipping weight | 7.3 lbs |
| Wire Rope Diameter | 7/8" |
| Inside Length | 4-1/4" |
| Inside Width | 2-1/4" |
| Material | 316 Stainless Steel |
| Style | Heavy-Duty |
| Product Weight | 7.3 lbs. |
| Standards | Dimensions meet Federal Specification FF-T276b, Type III |
| Brand Part Number | 414S-22 |
