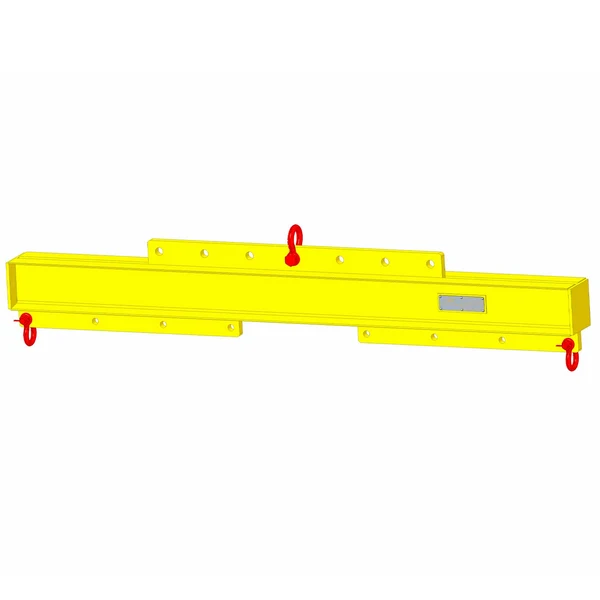

1 / 4 Adjustable Length Economy Lifting Beam -500 lb Capacity - 4' Max Spread
The Adjustable Length Economy Lifting Beam -500 lb Capacity - 4' Max Spread is part of our Economy Adjustable w/ Shackles line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 500 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 500 lbs
- Material: Steel
| SKU | LBE5001248 |
|---|---|
| Shipping weight | 60 lbs |
| Working Load Limit (lbs.) | 500 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Spread | 1' - 4' |
| Shackle Size | Top shackle(s): 3/8” Bottom shackle(s): 3/8” |
| End Fitting | Top & Bottom Shackles Included |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Product Weight | 45 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 13855 |
| Additional Info | WLL (tons): 0.25 Headroom: 7.57" Bail Adjustment Length: 16" Bail Adjustment Increments: 4" |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
