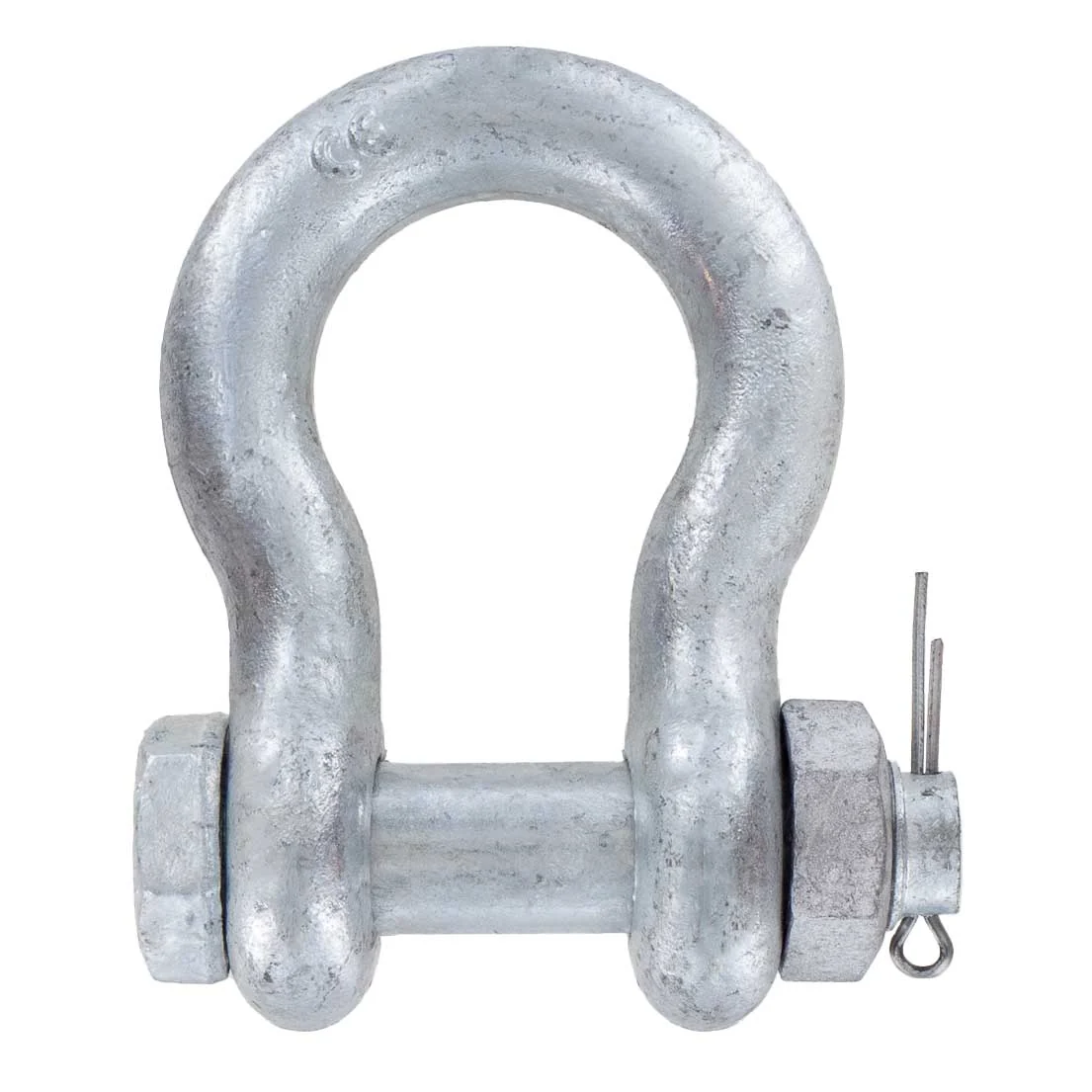

1 / 8 5/16" Galvanized Bolt Type Anchor Shackle - 0.75 Ton
The 5/16" Galvanized Bolt Type Anchor Shackle - 0.75 Ton is part of our Galvanized Bolt Type Shackles line in the Shackles department. It is rated with a working load limit of 1,500 lbs. Construction: Carbon Steel Shackle Alloy Pin with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 1,500 lbs
- Inside Width: 0.84"
- Mouth Width: 0.53"
- Material: Carbon Steel Shackle Alloy Pin
| SKU | BTAS516 |
|---|---|
| Shipping weight | 0.22 lbs |
| Working Load Limit (lbs.) | 1500 |
| Safety Factor | 6:1 |
| Inside Width | 0.84" |
| Inside Height | 1.22" |
| Mouth Width | 0.53" |
| Shackle Size | 5/16" |
| Pin Size | 3/8" |
| Material | Carbon Steel Shackle Alloy Pin |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | .22 lbs. |
| Standards | Meets or exceeds all requirements of Federal Specification RR-C-271 & ASTM A148M. |
| Additional Info | WLL (tons): 0.75 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
