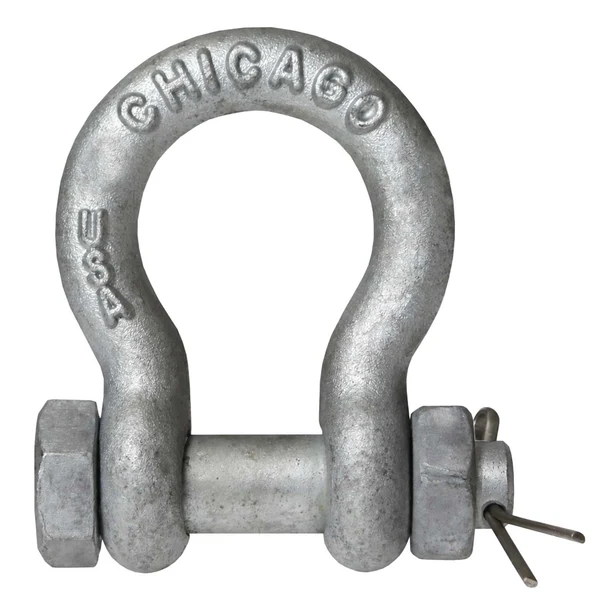

1 / 6 Bolt Type Anchor Shackle - Chicago Hardware - 1-1/8" Galvanized Steel - 9.5 Ton
The Bolt Type Anchor Shackle - Chicago Hardware - 1-1/8" Galvanized Steel - 9.5 Ton is part of our Made in America - Bolt Type Anchor Shackles line in the Shackles department. It is rated with a working load limit of 19,000 lbs. Construction: Drop-Forged Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 19,000 lbs
- Inside Width: 2.94"
- Mouth Width: 1.19"
- Material: Drop-Forged Steel
| SKU | BTAS1-18-D |
|---|---|
| Shipping weight | 7.7 lbs |
| Working Load Limit (lbs.) | 19000 |
| Safety Factor | 6:1 |
| Inside Width | 2.94" |
| Inside Height | 4.25" |
| Mouth Width | 1.19" |
| Shackle Size | 1-1/8" |
| Pin Size | 1-1/4" |
| Material | Drop-Forged Steel |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 7.65 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Chicago Hardware |
| Brand Part Number | 20655 6 |
| Additional Info | WLL (tons): 9.5 |
