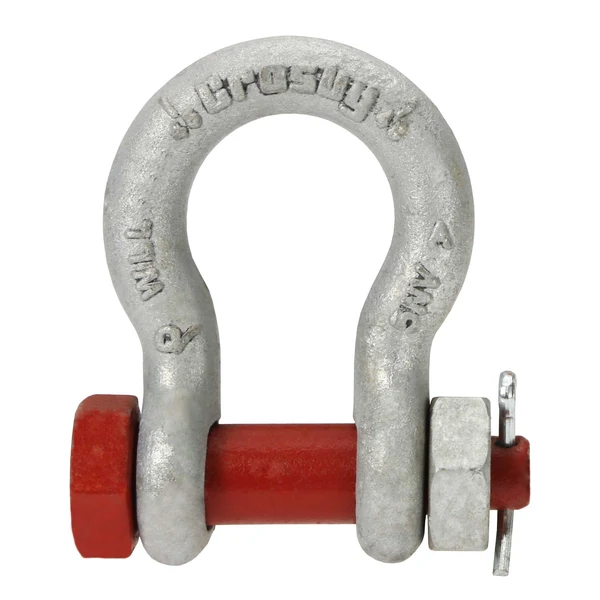

1 / 8 2" Crosby® Alloy Bolt Type Anchor Shackle | G-2140 - 55 Ton
The 2" Crosby® Alloy Bolt Type Anchor Shackle - G-2140 - 55 Ton is part of our Crosby (G-2140) - Alloy Bolt Type Anchor Shackles line in the Shackles department. It is rated with a working load limit of 121,254 lbs. Construction: Alloy Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 121,254 lbs
- Inside Width: 5.75"
- Mouth Width: 3.25"
- Material: Alloy Steel
| SKU | BTASA2-CR |
|---|---|
| Shipping weight | 49.9 lbs |
| Working Load Limit (lbs.) | 121254 |
| Safety Factor | 5.4:1 |
| Inside Width | 5.75" |
| Inside Height | 7.75" |
| Mouth Width | 3.25" |
| Shackle Size | 2" |
| Pin Size | 2-1/4" |
| Material | Alloy Steel |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 49.9 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1021156 |
| Additional Info | WLL (tons): 55 |
