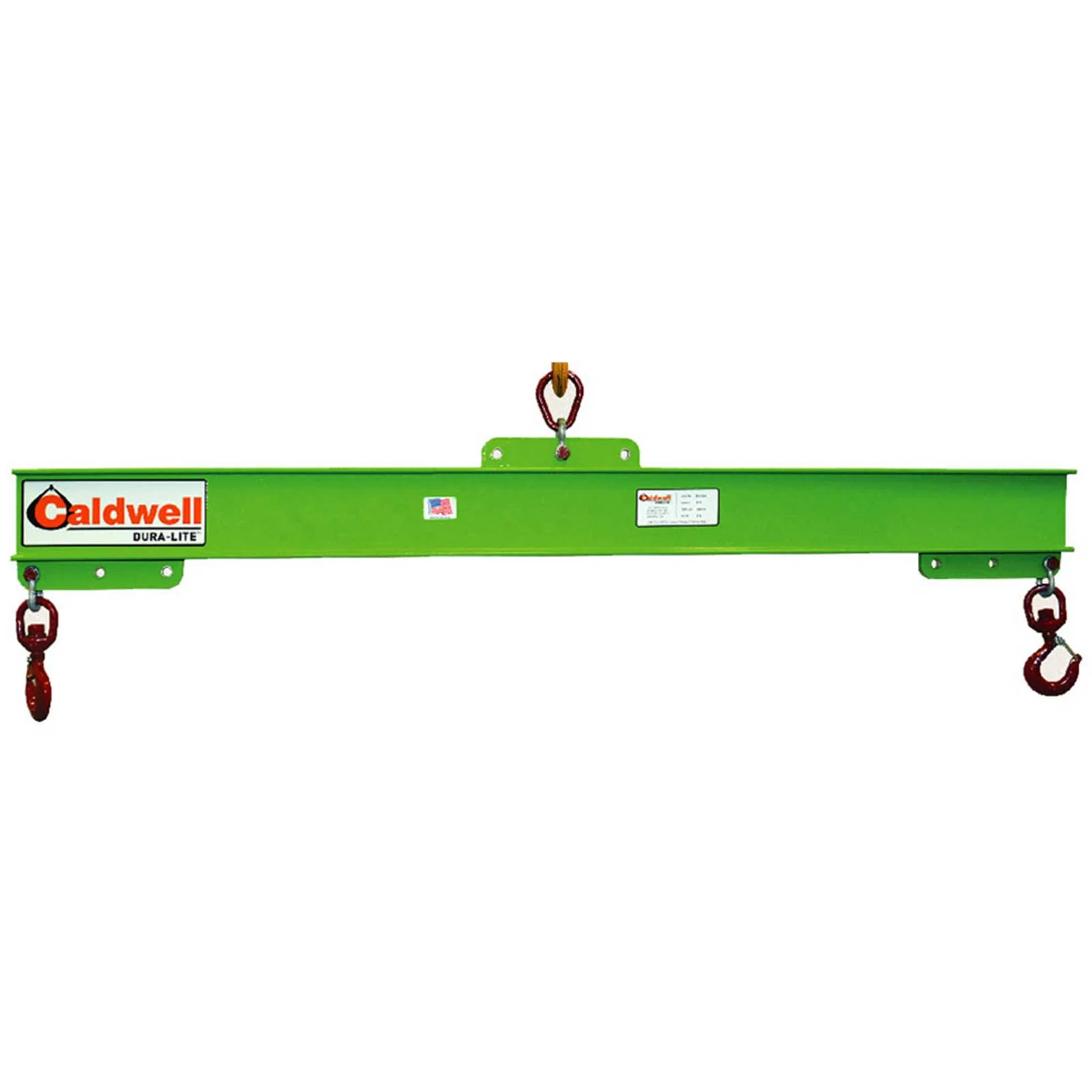

1 / 6 Caldwell 1/2 Ton x 1 - 2' Adjustable Lifting Beam | Dura-Lite 416-1/2-2
The Caldwell 1/2 Ton x 1 - 2' Adjustable Lifting Beam - Dura-Lite 416-1/2-2 is part of our Dura-Lite 416 Adjustable Beam line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 1,102 lbs. Construction: Fiber-Reinforced Polymer Composite with a acrylic polyurethane finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 1,102 lbs
| SKU | CASLB1000-2 |
|---|---|
| Shipping weight | 11 lbs |
| Working Load Limit (lbs.) | 1102 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Throat Opening | 0.89" |
| Spread | 1' - 2' |
| Bail Dimensions | Inside Width: 1.5" Inside Length: 1.9" Diameter: 0.38" |
| End Fitting | Bottom Swivel Latch Hooks & Top Link Included |
| Material | Fiber-Reinforced Polymer Composite |
| Finish | Acrylic Polyurethane |
| Product Weight | 11 lbs. |
| Standards | Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations. |
| Manufacturer Name | Caldwell |
| Brand Part Number | 416-1/2-2 |
| Additional Info | WLL (tons): 0.5 Headroom: 13.9" Bail Adjustment Length: 6" Bail Adjustment Increments: 3" |
