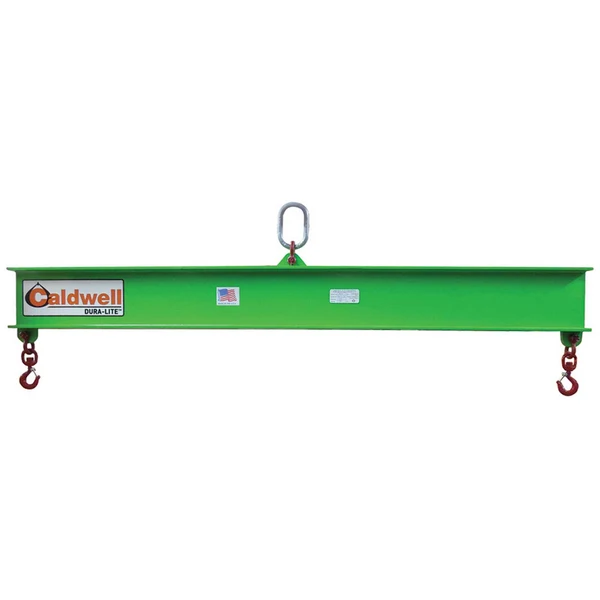

1 / 8 Caldwell 2 Tons x 4' Lifting Beam | Dura-Lite 419-2-4
The Caldwell 2 Tons x 4' Lifting Beam - Dura-Lite 419-2-4 is part of our Dura-Lite 419 Lifting Beam line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 4,409 lbs. Construction: Fiber-Reinforced Polymer Composite with a acrylic polyurethane finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 4,409 lbs
| SKU | CLB4000-4 |
|---|---|
| Shipping weight | 55 lbs |
| Working Load Limit (lbs.) | 4409 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Throat Opening | 0.91" |
| Spread | 4' |
| Bail Dimensions | Inside Width: 2.8" Inside Length: 4.3" Diameter: 0.62" |
| End Fitting | Bottom Swivel Latch Hooks & Top Link Included |
| Material | Fiber-Reinforced Polymer Composite |
| Finish | Acrylic Polyurethane |
| Product Weight | 55 lbs. |
| Standards | Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations. |
| Manufacturer Name | Caldwell |
| Brand Part Number | 419-2-4 |
| Additional Info | WLL (tons): 2 Headroom: 25.9" |
