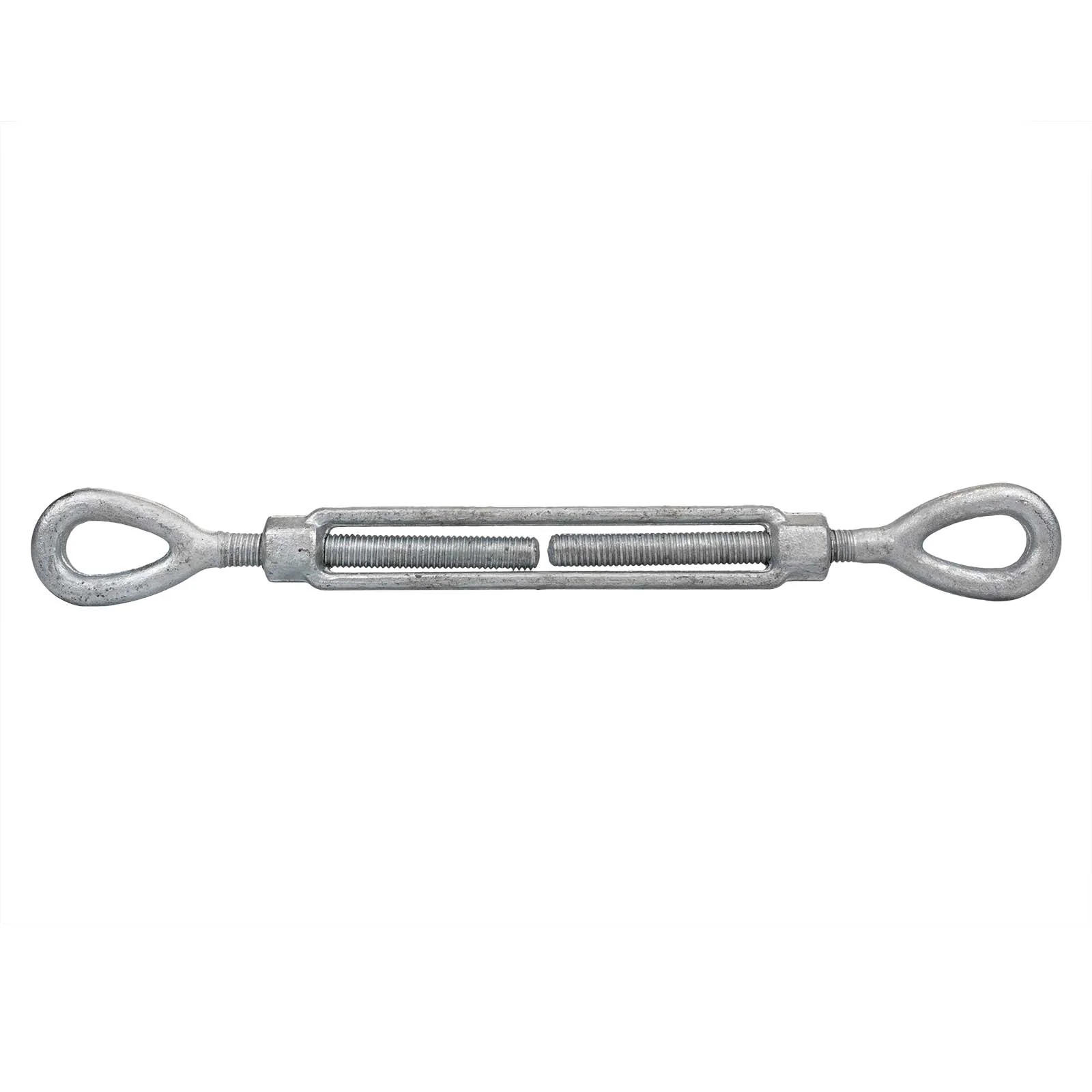

1 / 7 1" x 24" Eye & Eye Galvanized Turnbuckle
The 1" x 24" Eye & Eye Galvanized Turnbuckle is part of our Galvanized Eye & Eye line in the Turnbuckles department. It is rated with a working load limit of 10,000 lbs. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 10,000 lbs
- Length Closed: 39.72"
- Length Open: 63.25"
- Body Length: 24"
- Diameter: 1"
| SKU | EETBGV1X24 |
|---|---|
| Shipping weight | 17 lbs |
| Working Load Limit (lbs.) | 10000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 1" |
| Length Closed | 39.72" |
| Length Open | 63.25" |
| Body Length | 24" |
| Turnbuckle Size | 1" x 24" |
| Finish | Galvanized |
| Product Weight | 17 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
