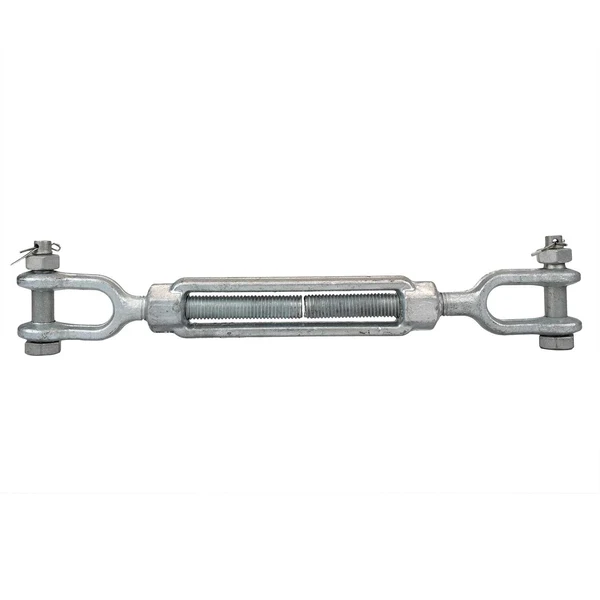

1 / 7 1-3/4" x 18" Jaw & Jaw Galvanized Turnbuckle
The 1-3/4" x 18" Jaw & Jaw Galvanized Turnbuckle is part of our Galvanized Jaw & Jaw line in the Turnbuckles department. It is rated with a working load limit of 28,000 lbs. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 28,000 lbs
- Length Closed: 41.18"
- Length Open: 59.5"
- Body Length: 18"
- Diameter: 1-3/4"
| SKU | JJTBGV134X18 |
|---|---|
| Shipping weight | 52.95 lbs |
| Working Load Limit (lbs.) | 28000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 1-3/4" |
| Length Closed | 41.18" |
| Length Open | 59.5" |
| Body Length | 18" |
| Jaw Opening | 2.38" |
| Turnbuckle Size | 1-3/4" x 18" |
| Pin Size | 1.61" |
| Finish | Galvanized |
| Product Weight | 52.95 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Additional Info | Jaw end fitted with nut, bolt, and cotter |
