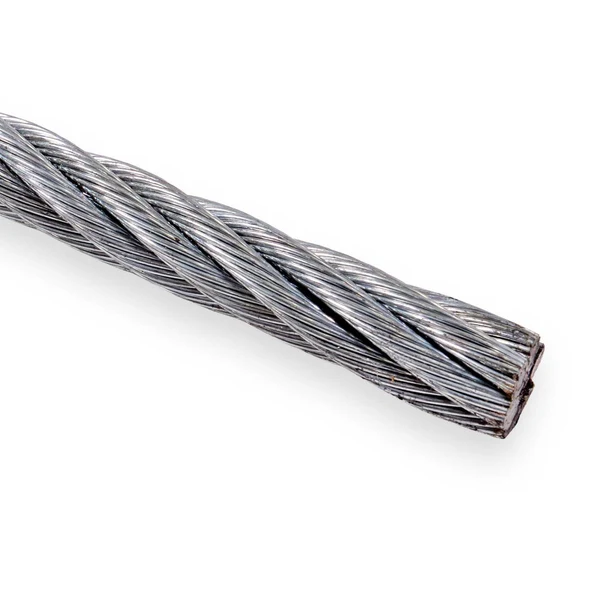

1 / 6 7/16" 6x19 Galvanized Wire Rope - EIPS IWRC | Linear Foot
The 7/16" 6x19 Galvanized Wire Rope - EIPS IWRC - Linear Foot is part of our 6x19 Galvanized Wire Rope line in the Wire Rope department. It is rated with a break strength of 10.2 tons / 20,400 lbs. and a Grade EIPS rating. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 10.2 tons / 20,400 lbs.
- Grade: EIPS
- Length: 1'
- Wire Rope Diameter: 7/16"
| SKU | LF716EIG619 |
|---|---|
| Shipping weight | 0.35 lbs |
| Assembly Break Strength | 10.2 tons / 20,400 lbs. |
| Rated for Overhead Lifting | Yes |
| Grade | EIPS |
| Wire Rope Diameter | 7/16" |
| Length | 1' |
| Wire Rope Class | 6x19 |
| Core | IWRC |
| Finish | Galvanized |
| Product Weight | 0.35 lbs. |
| Weight Per Foot | 0.35 |
| Standards | Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023 |
| Additional Info | Right Hand Regular Lay |
