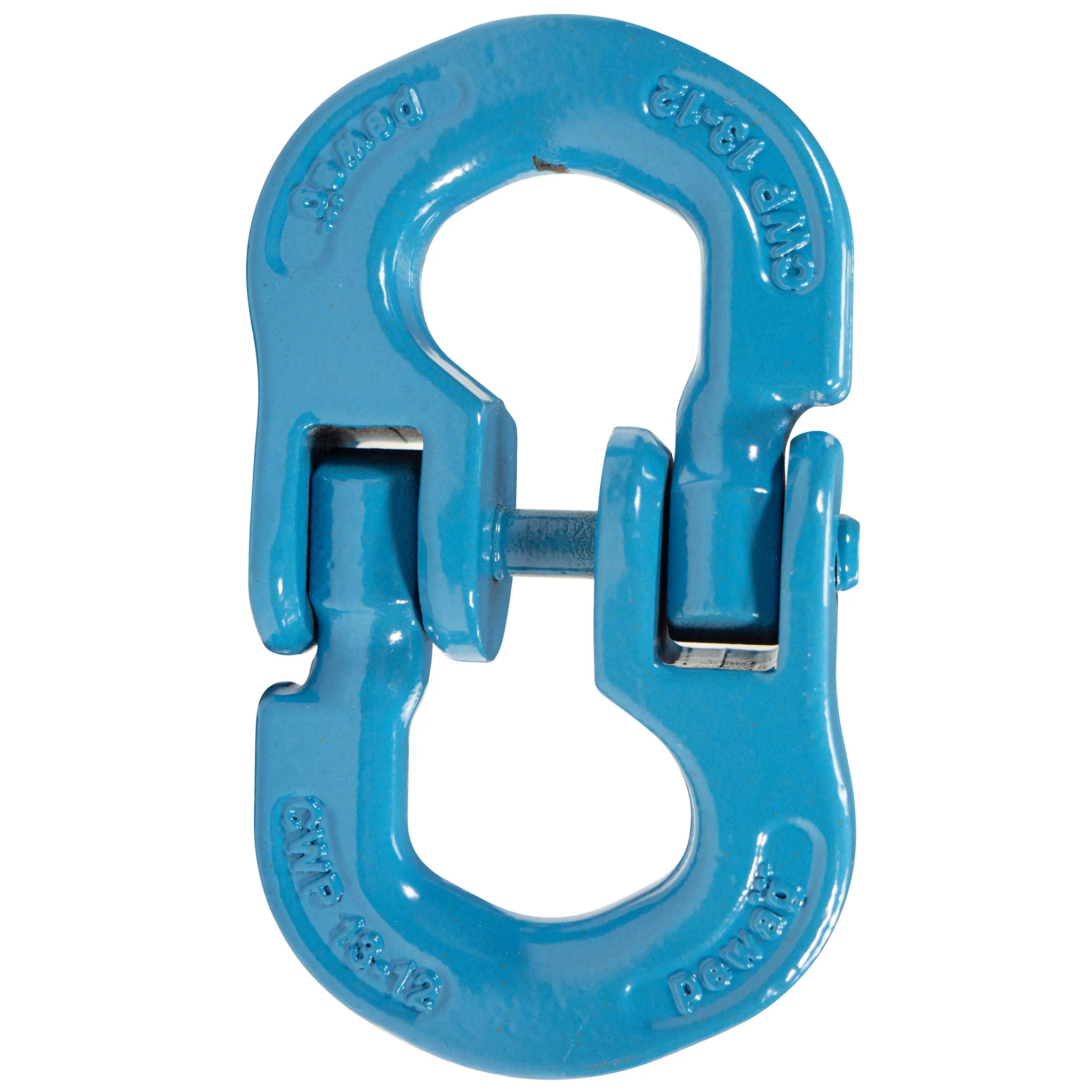

1 / 2 Grade 120 Connecting Link - 1/2"
The Grade 120 Connecting Link - 1/2" is part of our Grade 120 Fittings line in the Bulk Chain department. It is rated with a working load limit of 17,900 lbs. Construction: High Strength Alloy Steel with a powder coated finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 17,900 lbs
- Grade: 120
- Chain Size: 1/2"
- Material: High Strength Alloy Steel
| SKU | G120CLINK12 |
|---|---|
| Shipping weight | 1.54 lbs |
| Working Load Limit (lbs.) | 17900 |
| Safety Factor | 4:1 |
| Rated for Overhead Lifting | Yes |
| Grade | 120 |
| Chain Size | 1/2" |
| Material | High Strength Alloy Steel |
| Finish | Powder Coated |
| Color | Blue |
| Operating Temperature | 40°F / -40°C to 392°F / 200°C |
| Product Weight | 1.54 lbs. |
| Standards | Meets or exceeds ASTM A952 / A952M & ASME B30.26 requirements. |
| Manufacturer Name | Pewag |
| Brand Part Number | CWP 13 |
| Additional Info | Manufactured in the EU. |
