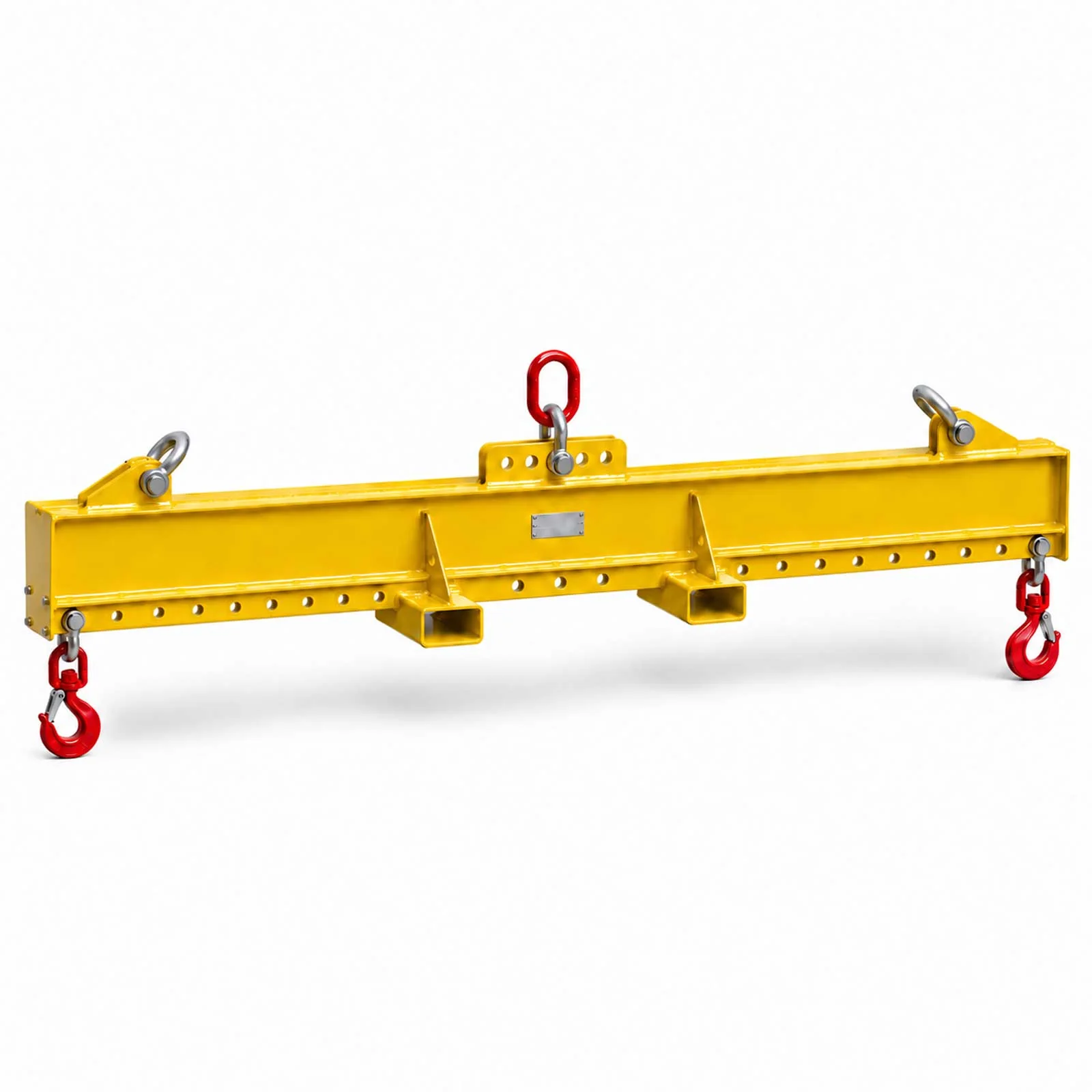

1 / 5 M&W 12' Universal Lifting Beam & Spreader Beam - 40,000 lbs. WLL
The M&W 12' Universal Lifting Beam & Spreader Beam - 40,000 lbs. WLL is part of our M&W Universal Lifting Beam line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 40,000 lbs. Construction: Alloy Steel with a painted finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 40,000 lbs
- Length: 12'
- Material: Alloy Steel
| SKU | ULB40K12-MW |
|---|---|
| Shipping weight | 2,145 lbs |
| Working Load Limit (lbs.) | 40000 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Length | 12' |
| Spread | 12' |
| Shackle Size | Shackle #1 - 1-3/4" Shackle #2 - 1-1/8" Shackle #3 - 1-3/4" |
| Material | Alloy Steel |
| Finish | Painted |
| Color | Yellow |
| Product Weight | 2145 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 26336 |
| Additional Info | Shackles not included Minimum sling length - 82" |
