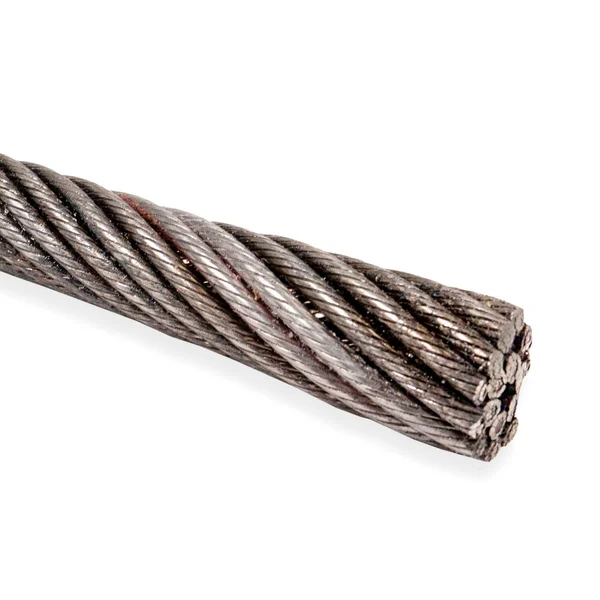

1 / 9 5/8" 19x19 Compacted Rotation-Resistant Wire Rope - EIPS IWRC | Linear Foot
The 5/8" 19x19 Compacted Rotation-Resistant Wire Rope - EIPS IWRC - Linear Foot is part of our 19x19 Compacted Bright Wire Rope line in the Wire Rope department. It is rated with a break strength of 22.7 tons / 45,400 lbs. and a Grade EIPS rating. Construction: bright finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 22.7 tons / 45,400 lbs.
- Grade: EIPS
- Length: 1'
- Wire Rope Diameter: 5/8"
| SKU | LF58CBW1919 |
|---|---|
| Shipping weight | 0.85 lbs |
| Assembly Break Strength | 22.7 tons / 45,400 lbs. |
| Rated for Overhead Lifting | Yes |
| Grade | EIPS |
| Wire Rope Diameter | 5/8" |
| Length | 1' |
| Wire Rope Class | 19x19 |
| Core | IWRC |
| Finish | Bright |
| Product Weight | 0.85 lbs. |
| Weight Per Foot | 0.85 |
| Standards | Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023 |
| Additional Info | Category 2 Rotation-Resistant Rope Right Hand Regular Lay |
