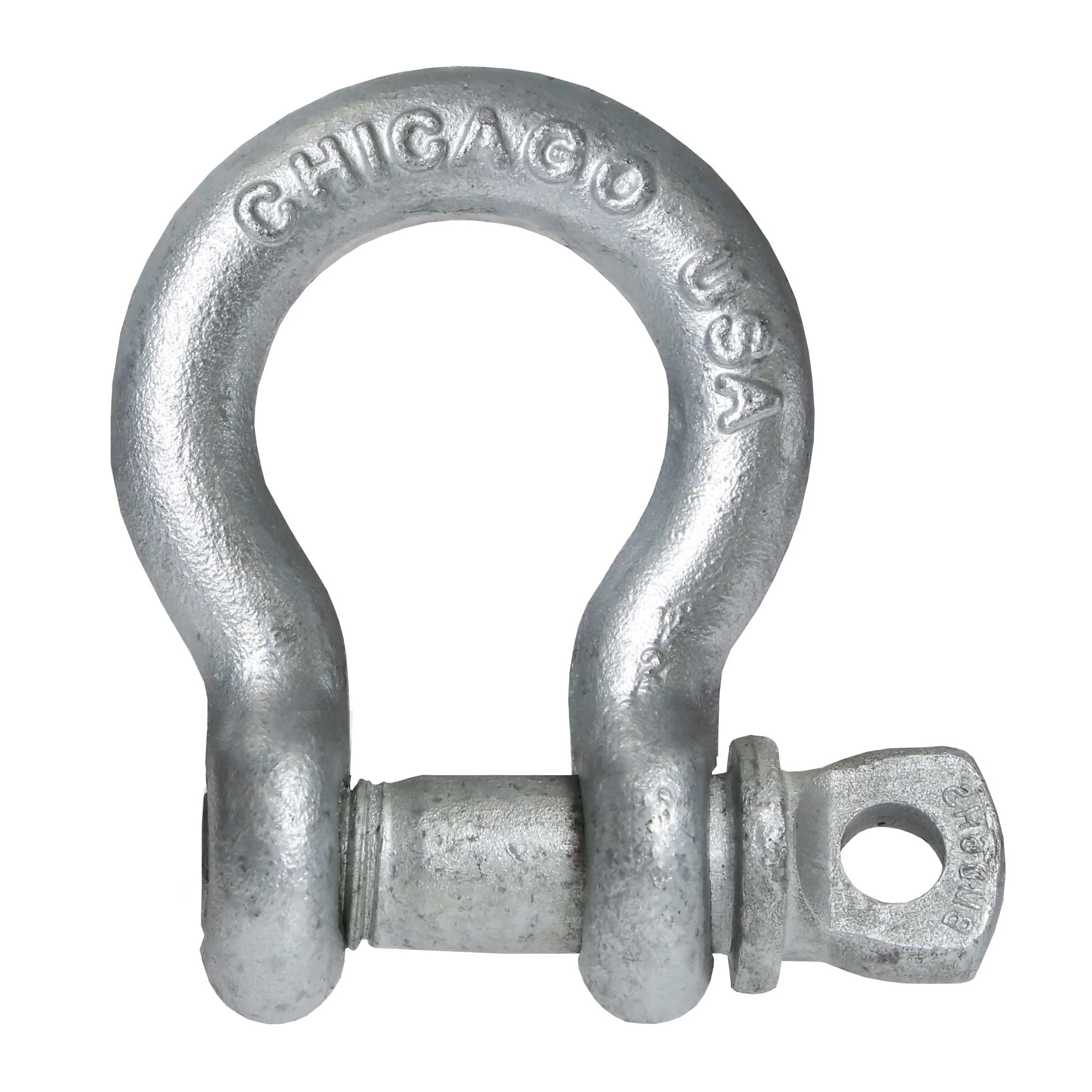

1 / 6 Screw Pin Anchor Shackle - Chicago Hardware - 3/16" Galvanized Steel - .33 Ton
The Screw Pin Anchor Shackle - Chicago Hardware - 3/16" Galvanized Steel - .33 Ton is part of our Made in America - Screw Pin Anchor Shackles line in the Shackles department. It is rated with a working load limit of 660 lbs. Construction: Drop-Forged Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 660 lbs
- Inside Width: 0.56"
- Mouth Width: 0.38"
- Material: Drop-Forged Steel
| SKU | SPAS316-D |
|---|---|
| Shipping weight | 0.1 lbs |
| Working Load Limit (lbs.) | 660 |
| Safety Factor | 6:1 |
| Inside Width | 0.56" |
| Inside Height | 0.88" |
| Mouth Width | 0.38" |
| Shackle Size | 3/16" |
| Pin Size | 1/4" |
| Material | Drop-Forged Steel |
| Finish | Galvanized |
| Type | Screw Pin Anchor |
| Product Weight | .07 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Chicago Hardware |
| Brand Part Number | 20105 6 |
| Additional Info | WLL (tons): 0.33 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
