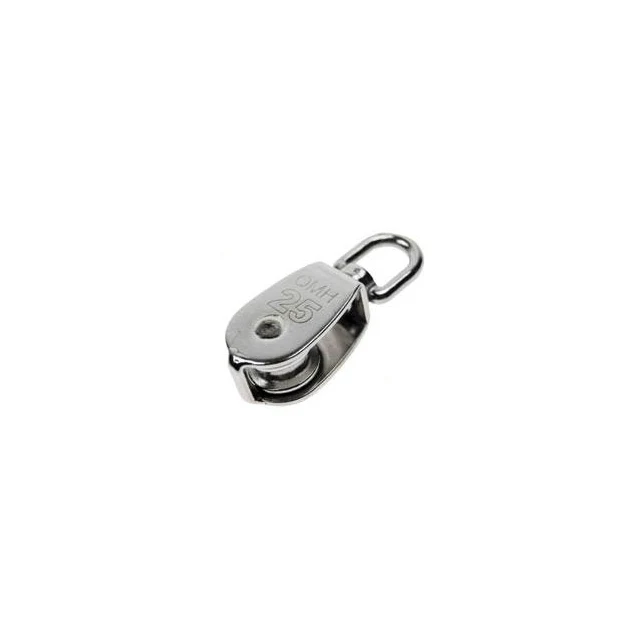

Single Swivel Eye Block w/ Brass Bushing - 304 Stainless Steel 1/4" x 1"
The Single Swivel Eye Block w/ Brass Bushing - 304 Stainless Steel 1/4" x 1" is part of our Single Swivel Eye Block line in the Blocks & Pulleys department. It is rated with a working load limit of 550 lbs.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 550 lbs
- Wire Rope Diameter: 1/4"
- Sheave Diameter: 1"
| SKU | SSWIVELEYEBLOCK14-1 |
|---|---|
| Shipping weight | 0.3 lbs |
| Working Load Limit (lbs.) | 550 |
| Wire Rope Diameter | 1/4" |
| Sheave Diameter | 1" |
| Type | Brass Bushing |
| Product Weight | .3 lbs. |
| Standards | Meets or exceeds All ASME B30.26 requirements. |
| Brand Part Number | 314S-25 |
