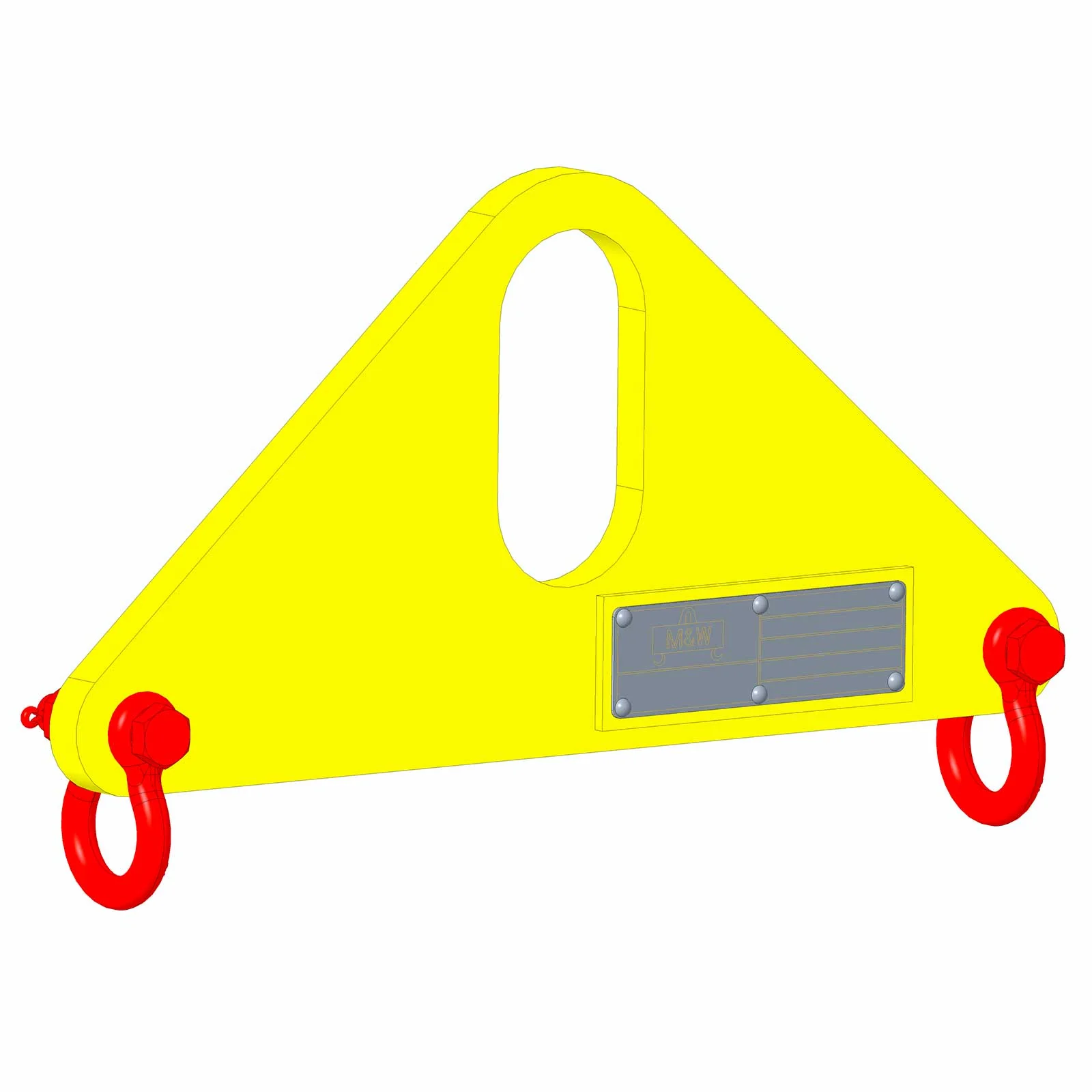

1 / 4 Small Length Lifting Beam (Bale Top) - 500 Lb. Capacity - 2' Max Spread
The Small Length Lifting Beam (Bale Top) - 500 Lb. Capacity - 2' Max Spread is part of our Small Length Lifting Beams w/ Bale Top line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 500 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 500 lbs
- Material: Steel
| SKU | LBSMB50024 |
|---|---|
| Shipping weight | 30 lbs |
| Working Load Limit (lbs.) | 500 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Spread | 2' |
| Shackle Size | 3/8” |
| Bail Dimensions | Inside Width: 2" Inside Length: 4" |
| End Fitting | Bottom Shackles Included |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Product Weight | 15 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 20348 |
| Additional Info | WLL (tons): 0.25 Headroom: 6.8" |
