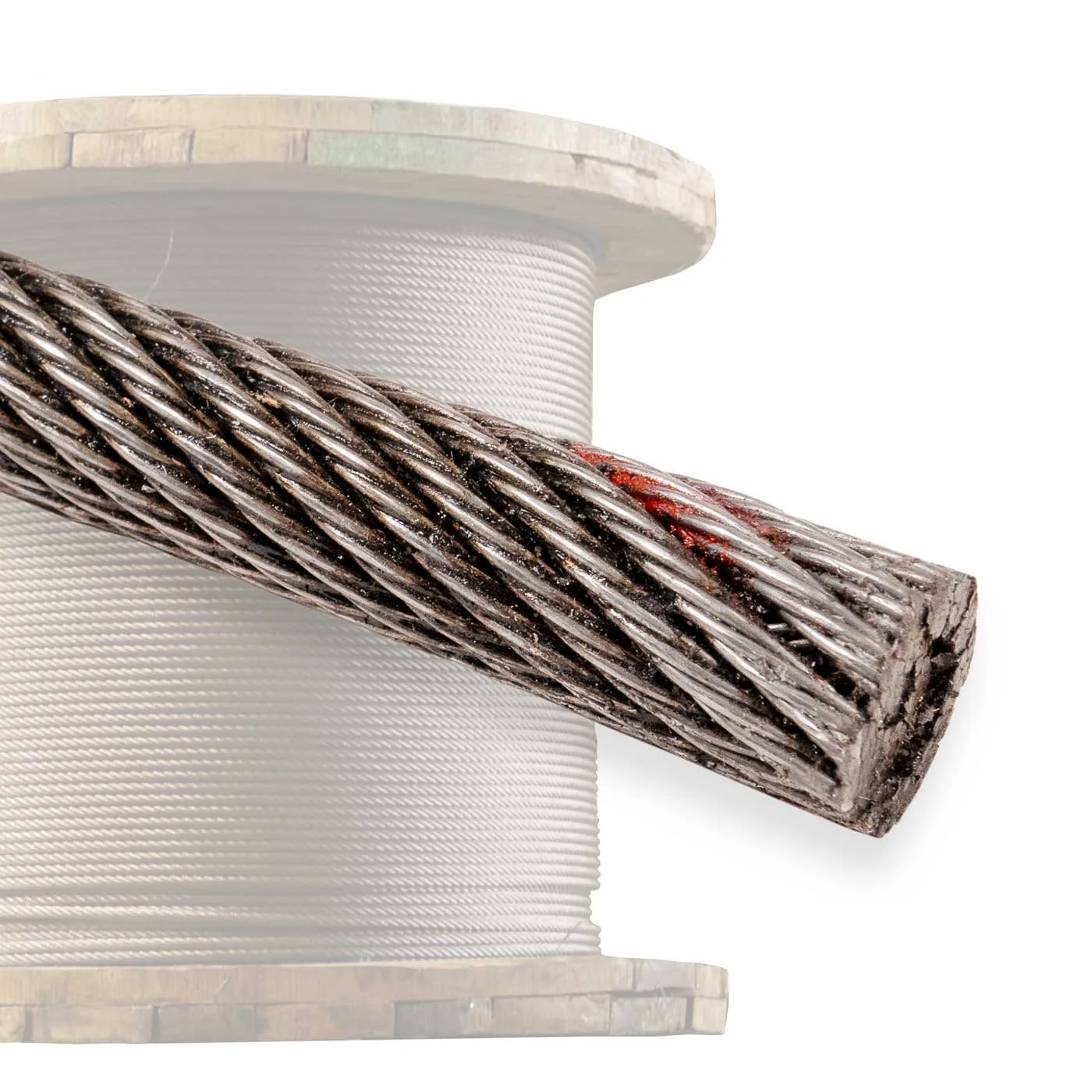

1 / 8 5/16" 19x7 Rotation-Resistant Wire Rope - EIPS IWRC | 5,000' Coil
The 5/16" 19x7 Rotation-Resistant Wire Rope - EIPS IWRC - 5,000' Coil is part of our 19x7 Bright Steel Core Wire Rope line in the Wire Rope department. It is rated with a break strength of 4.3 tons / 8,600 lbs. and a Grade EIPS rating. Construction: bright finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 4.3 tons / 8,600 lbs.
- Grade: EIPS
- Length: 5,000'
- Wire Rope Diameter: 5/16"
| SKU | LC516EWB197SR |
|---|---|
| Shipping weight | 585 lbs |
| Assembly Break Strength | 4.3 tons / 8,600 lbs. |
| Rated for Overhead Lifting | Yes |
| Grade | EIPS |
| Wire Rope Diameter | 5/16" |
| Length | 5,000' |
| Wire Rope Class | 19x7 |
| Core | IWRC |
| Finish | Bright |
| Product Weight | 585 lbs. |
| Weight Per Foot | 0.177 |
| Standards | Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023 |
| Additional Info | Category 2 Rotation-Resistant Rope Right Hand Regular Lay |
