Straightpoint® 100 T LoadSafe Compression Load Cell - WNI100TC
$9,074.09
Load Capacity220,000 lbs.
In stock — ready to ship
Pay by ACH or wire — invoice emailed
Parcel or LTL freight, all 50 states
The Straightpoint® 100 T LoadSafe Compression Load Cell - WNI100TC is part of our Compression Load Cells line in the Load Cells department.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Load Capacity: 220,000 lbs.
| SKU | WNI-100-TC |
|---|---|
| Shipping weight | 34 lbs |
| Safety Factor | 3:1 |
| Load Capacity | 220,000 lbs. |
| Output | Handheld |
| Power Source | 4 x AA Alkaline Batteries |
| Accuracy | +/- 0.1% of Full Scale |
| Resolution | 100 lbs. |
| Range | 3,280' |
| Data Rate | 3Hz - Configurable to 200Hz |
| Operating Temperature | -10° to +50°C | 14° to 122° F |
| Battery Life | 1,200 hours continuous |
| Product Weight | 34 lbs. |
| Standards | IP67 |
| Manufacturer Name | Crosby Straightpoint |
| Brand Part Number | WNI100TC / 2789190 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
Unused items in original packaging can be returned within 30 days. See the return policy.
Related products
All Compression Load Cells ›

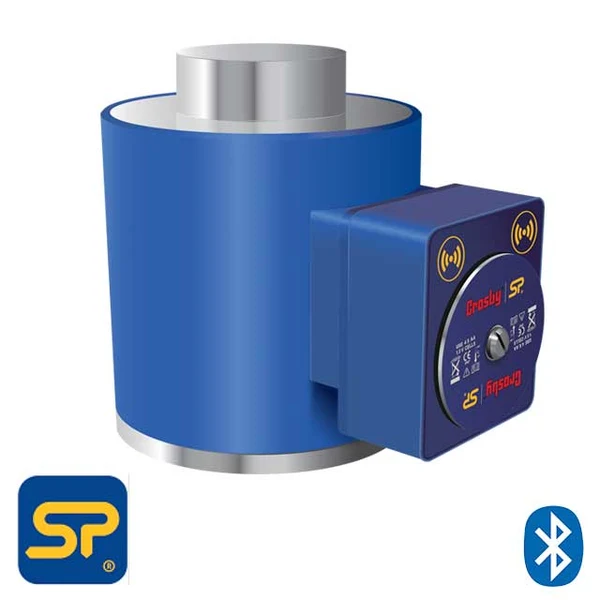

Capacity: 220,000 lbs. Straightpoint® 100 T LoadSafe Compression Load Cell - Bluetooth Enabled - WNI100TC-BLE
