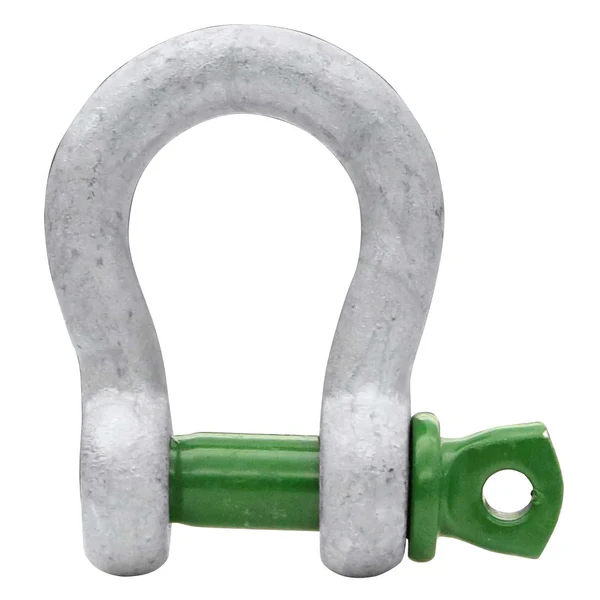

1 / 8 2" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 35 Ton
The 2" Van Beest Green Pin® Screw Pin Anchor Shackle - G-4161 - 35 Ton is part of our Van Beest Screw Pin Anchor Shackles line in the Shackles department. It is rated with a working load limit of 77,161 lbs. Construction: Grade 6 High-Tensile Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 77,161 lbs
- Inside Width: 5.44"
- Mouth Width: 3.28"
- Material: Grade 6 High-Tensile Steel
| SKU | SPAS2-VB |
|---|---|
| Shipping weight | 40.01 lbs |
| Working Load Limit (lbs.) | 77161 |
| Safety Factor | 6:1 |
| Inside Width | 5.44" |
| Inside Height | 7.75" |
| Mouth Width | 3.28" |
| Shackle Size | 2" |
| Pin Size | 2-1/4" |
| Material | Grade 6 High-Tensile Steel |
| Finish | Galvanized |
| Type | Screw Pin Anchor |
| Product Weight | 40.01 lbs. |
| Standards | Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271. |
| Manufacturer Name | Van Beest |
| Brand Part Number | GPGHBB50 |
| Additional Info | WLL (tons): 35 |
