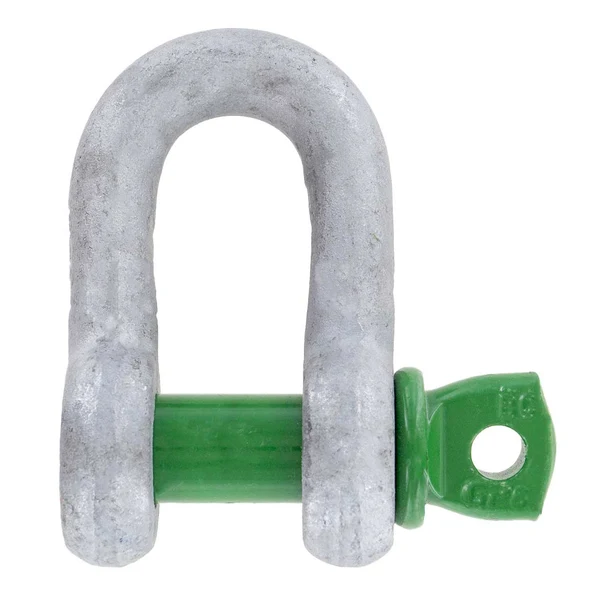

1 / 8 2-1/2" Van Beest Green Pin® Screw Pin Chain Shackle | G-4151 - 55 Ton
The 2-1/2" Van Beest Green Pin® Screw Pin Chain Shackle - G-4151 - 55 Ton is part of our Van Beest Screw Pin Chain Shackles line in the Shackles department. It is rated with a working load limit of 121,254 lbs. Construction: Grade 6 High-Tensile Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 121,254 lbs
- Inside Width: 4.13"
- Mouth Width: 4.13"
- Material: Grade 6 High-Tensile Steel
| SKU | SPCS2-12-VB |
|---|---|
| Shipping weight | 71.98 lbs |
| Working Load Limit (lbs.) | 121254 |
| Safety Factor | 6:1 |
| Inside Width | 4.13" |
| Inside Height | 8" |
| Mouth Width | 4.13" |
| Shackle Size | 2-1/2" |
| Pin Size | 2-3/4" |
| Material | Grade 6 High-Tensile Steel |
| Finish | Galvanized |
| Type | Screw Pin Chain |
| Product Weight | 71.98 lbs. |
| Standards | Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271. |
| Manufacturer Name | Van Beest |
| Brand Part Number | GPGDBB65 |
| Additional Info | WLL (tons): 55 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
