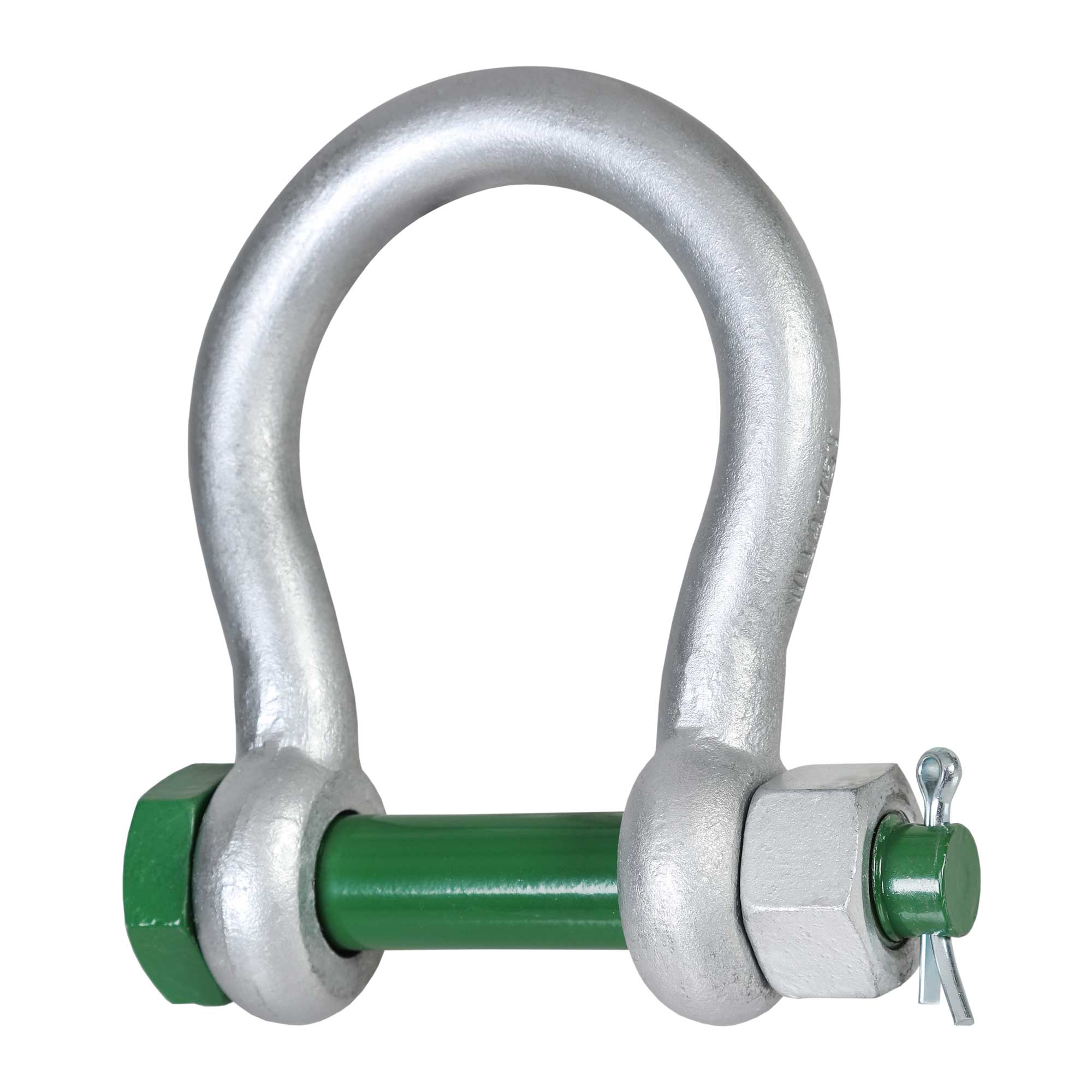

2" Van Beest Green Pin® Bolt Type Wide Mouth Towing Shackle | G-4263 - 30 Ton

Name: 2" Van Beest Green Pin® Bolt Type Wide Mouth Towing Shackle | G-4263 - 30 Ton
Brand: Heavy Haul Rigging
SKU: ABTWMTS2-VB
Availability: InStock

SKU: ABTWMTS2-VB Van Beest G-4263 Wide Mouth Towing Shackles More Van Beest Wide Mouth Towing Shackles ›

$1,419.55

Working Load Limit66,138 lbs

Inside Width8.47"

Mouth Width5.75"

MaterialAlloy Steel

In stock — ready to ship

No payment online — we contact you to arrange payment

Parcel or LTL freight, all 50 states

Download spec sheet (PDF)

Bulk pricing — request a quote

Final sale. For safety reasons this item can't be returned once shipped. Return policy

The 2" Van Beest Green Pin® Bolt Type Wide Mouth Towing Shackle - G-4263 - 30 Ton is part of our Van Beest Wide Mouth Towing Shackles line in the Shackles department. It is rated with a working load limit of 66,138 lbs. Construction: Alloy Steel with a galvanized finish.

Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.

At a glance

Working Load Limit: 66,138 lbs
Inside Width: 8.47"
Mouth Width: 5.75"
Material: Alloy Steel

SKU	ABTWMTS2-VB
Shipping weight	55.12 lbs
Working Load Limit (lbs.)	66138
Safety Factor	6:1
Inside Width	8.47"
Inside Height	10.75"
Mouth Width	5.75"
Shackle Size	2"
Pin Size	2-1/4"
Material	Alloy Steel
Finish	Galvanized
Type	Bolt Type Wide Mouth Towing
Product Weight	55.12 lbs.
Standards	Meets or exceeds all requirements of ASTM A148M.
Manufacturer Name	Van Beest
Brand Part Number	ASGHMB50
Additional Info	WLL (tons): 30

Spec sheet — SKU ABTWMTS2-VBPDF · ratings, dimensions, materials & safety information Load securement guideAggregate WLL rule, minimum tie-downs, chain & webbing charts Inspection & removal-from-service checklistWhat to look for before every use

Shipping

Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.

Returns

This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
