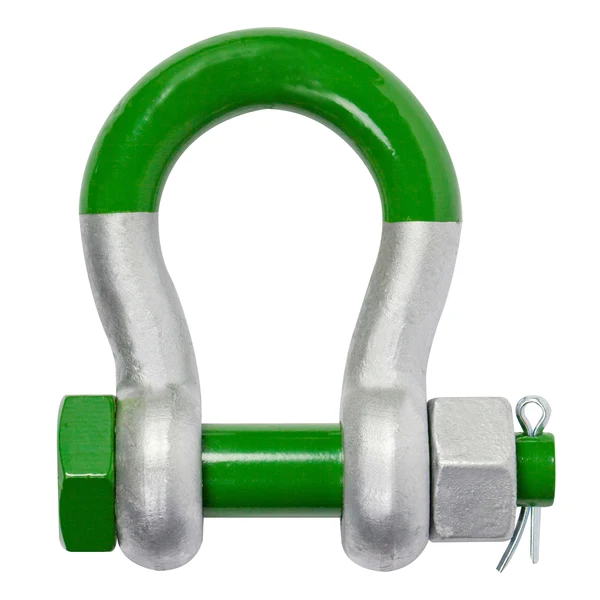

1 / 6 3/4" Van Beest Green Pin® Bolt Type Anchor Super Shackle | G-5263 - 7 Ton
The 3/4" Van Beest Green Pin® Bolt Type Anchor Super Shackle - G-5263 - 7 Ton is part of our Van Beest Alloy Bolt Type Bow Shackles line in the Shackles department. It is rated with a working load limit of 15,432 lbs. Construction: Alloy Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 15,432 lbs
- Inside Width: 2"
- Mouth Width: 1.22"
- Material: Alloy Steel
| SKU | ABTASS34-VB |
|---|---|
| Shipping weight | 2.78 lbs |
| Working Load Limit (lbs.) | 15432 |
| Safety Factor | 5:1 |
| Inside Width | 2" |
| Inside Height | 3" |
| Mouth Width | 1.22" |
| Shackle Size | 3/4" |
| Pin Size | 7/8" |
| Material | Alloy Steel |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 2.78 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Van Beest |
| Brand Part Number | SUGHMB19 |
| Additional Info | WLL (tons): 7 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
