5/8" x 20' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$1,225.00
GradeEIPS
Length20'
30 Degree Capacity7.8 tons / 15,600 lbs.
45 Degree Capacity11 tons / 22,000 lbs.
60 Degree Capacity14 tons / 28,000 lbs.
Diameter5/8"
In stock — ready to ship
Secure checkout with Stripe
Parcel or LTL freight, all 50 states
Final sale. For safety reasons this item can't be returned once shipped. Return policy
The 5/8" x 20' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks - Domestic is part of our 4 Leg Wire Rope Sling - Domestic line in the Wire Rope Slings department. It is rated with a Grade EIPS rating. Construction: Bright Steel Wire Rope.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Grade: EIPS
- Length: 20'
- 30 Degree Capacity: 7.8 tons / 15,600 lbs.
- 45 Degree Capacity: 11 tons / 22,000 lbs.
- 60 Degree Capacity: 14 tons / 28,000 lbs.
- Diameter: 5/8"
| SKU | SW4-58-20-D |
|---|---|
| Shipping weight | 116.34 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 7.8 tons / 15,600 lbs. |
| 45 Degree Capacity | 11 tons / 22,000 lbs. |
| 60 Degree Capacity | 14 tons / 28,000 lbs. |
| Grade | EIPS |
| Diameter | 5/8" |
| Length | 20' |
| Core | IWRC |
| End Fitting | 5 ton alloy hook |
| Material | Bright Steel Wire Rope |
| Product Weight | 116.34 lbs. |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Manufacturer Name | Crosby® |
| Additional Info | 1-1/4" master link diameter Rated capacities based on a D/d ratio of 25 Rope Class: 6x19 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
Related products
All 4 Leg Wire Rope Sling - Domestic ›
Capacity: 7.8 tons / 15,600 l… 5/8" x 16' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$1,145.00
Capacity: 7.8 tons / 15,600 l… 5/8" x 14' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$1,098.79
Capacity: 7.8 tons / 15,600 l… 5/8" x 12' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$1,075.00
Capacity: 7.8 tons / 15,600 l… 5/8" x 10' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$1,025.00
Capacity: 7.8 tons / 15,600 l… 5/8" x 8' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$979.00
Capacity: 7.8 tons / 15,600 l… 5/8" x 6' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
$949.00

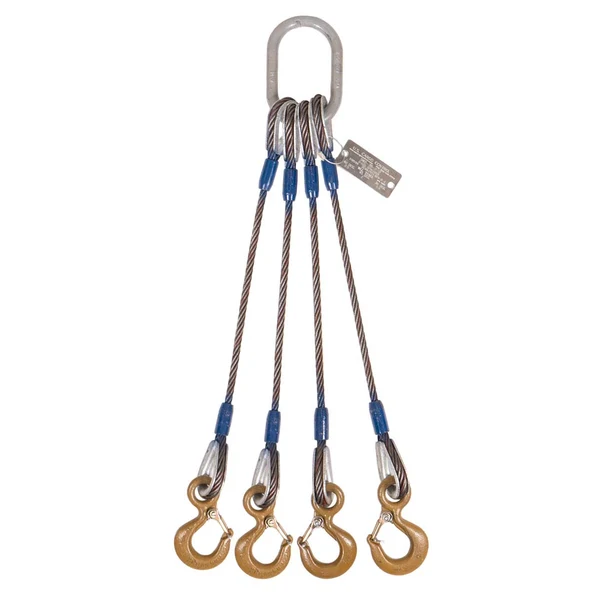

Capacity: 7.8 tons / 15,600 l… 5/8" x 5' 4-Leg Wire Rope Bridle Sling with Crosby Eye Hooks | Domestic
