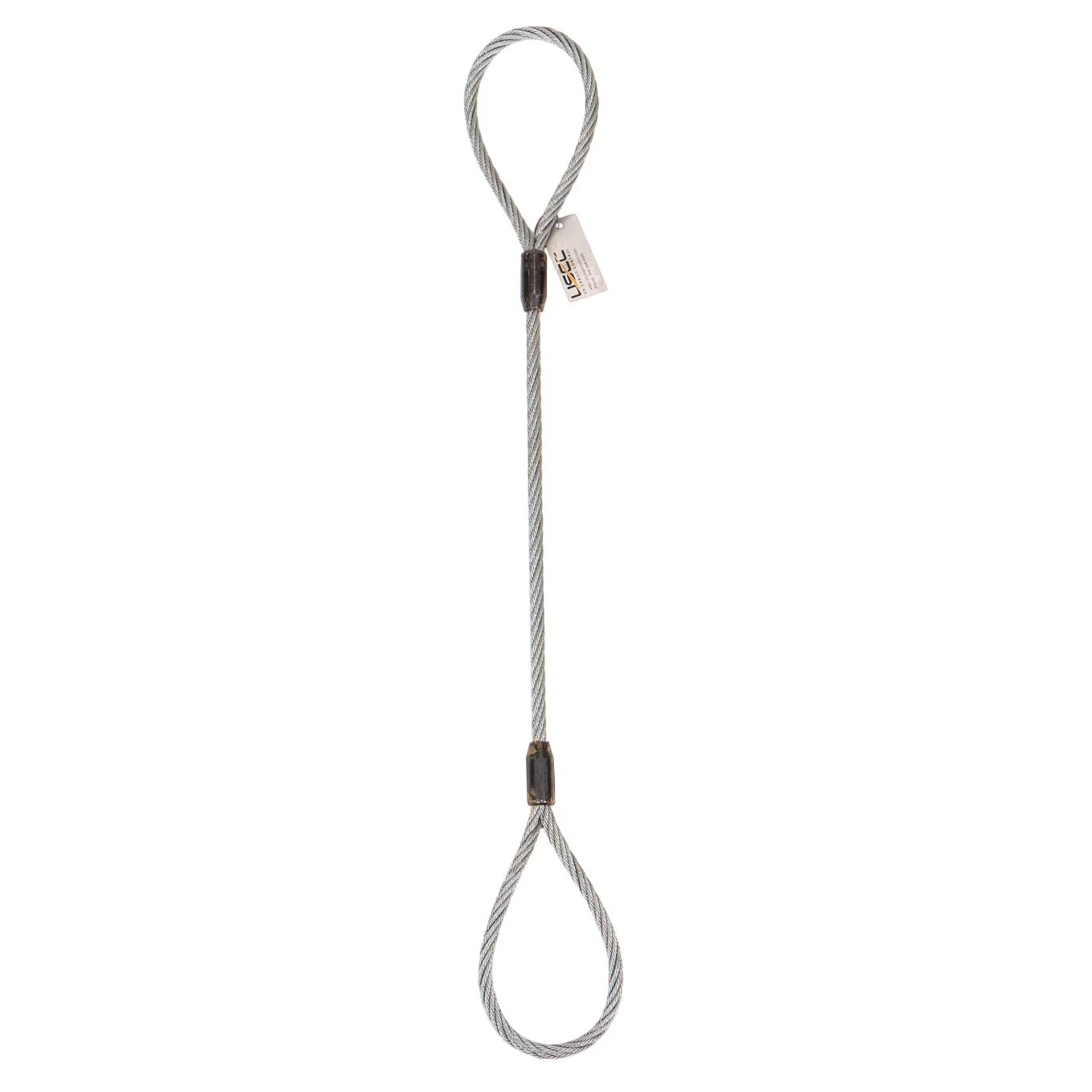

1 / 7 3/8" x 16' Standard Eye Cable Laid Wire Rope Sling | 7x7x7
The 3/8" x 16' Standard Eye Cable Laid Wire Rope Sling - 7x7x7 is part of our Cable Laid line in the Wire Rope Slings department. It is rated with a Grade EIPS rating. Construction: Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Grade: EIPS
- Length: 16'
- Vertical Capacity: 1.1 tons / 2,200 lbs.
- Choker Capacity: 0.81 tons / 1,620 lbs.
- Basket Capacity: 2.2 tons / 4,400 lbs.
- Diameter: 3/8"
| SKU | CL1-38-16 |
|---|---|
| Shipping weight | 4.16 lbs |
| Safety Factor | 5:1 |
| Vertical Capacity | 1.1 tons / 2,200 lbs. |
| Choker Capacity | 0.81 tons / 1,620 lbs. |
| Basket Capacity | 2.2 tons / 4,400 lbs. |
| Grade | EIPS |
| Diameter | 3/8" |
| Length | 16' |
| Rope Construction | 7x7 |
| Core | IWRC |
| End Fitting | Turn-Back Eye |
| Material | Steel |
| Finish | Galvanized |
| Product Weight | 4.16 lbs. |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Additional Info | Rated capacities for basket hitch based on a D/d ratio of 10/1 |
