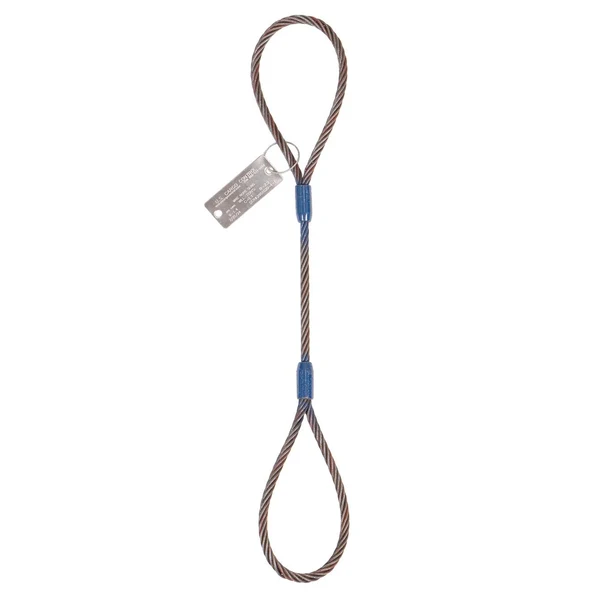

1 / 6 1/2" x 8' Standard Eye Wire Rope Sling | Domestic
The 1/2" x 8' Standard Eye Wire Rope Sling - Domestic is part of our Single Leg Wire Rope Sling - Domestic line in the Wire Rope Slings department. It is rated with a Grade EIPS rating. Construction: Bright Steel Wire Rope.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Grade: EIPS
- Length: 8'
- Vertical Capacity: 2.5 tons / 5,000 lbs.
- Choker Capacity: 1.9 tons / 3,800 lbs.
- Basket Capacity: 5.1 tons / 10,200 lbs.
- Diameter: 1/2"
| SKU | SW1-12-8-D |
|---|---|
| Shipping weight | 5.45 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 2.5 tons / 5,000 lbs. Angled Basket Hitch |
| 45 Degree Capacity | 3.6 tons / 7,200 lbs. Angled Basket Hitch |
| 60 Degree Capacity | 4.4 tons / 8,800 lbs. Angled Basket Hitch |
| Vertical Capacity | 2.5 tons / 5,000 lbs. |
| Choker Capacity | 1.9 tons / 3,800 lbs. |
| Basket Capacity | 5.1 tons / 10,200 lbs. |
| Grade | EIPS |
| Diameter | 1/2" |
| Length | 8' |
| Core | IWRC |
| End Fitting | Flemish Eye |
| Material | Bright Steel Wire Rope |
| Product Weight | 5.45 lbs. |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Manufacturer Name | Crosby® |
| Additional Info | Eye dimensions: 3-1/2"W x 7"L Rated capacities based on a D/d ratio of 25 Rope Class: 6x19 |
