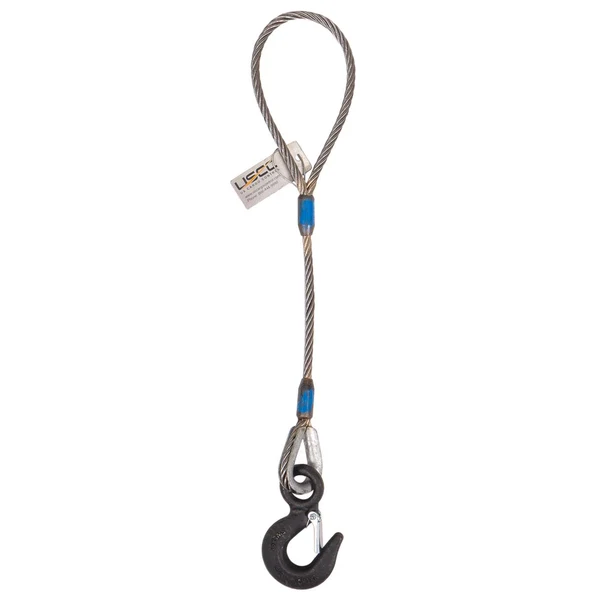

1 / 8 1/2" x 10' Standard Eye & Hook Wire Rope Sling
The 1/2" x 10' Standard Eye & Hook Wire Rope Sling is part of our Eye and Eye Hook Wire Rope Sling line in the Wire Rope Slings department. It is rated with a Grade EIPS rating. Construction: Bright Steel Wire Rope.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Grade: EIPS
- Length: 10'
- Vertical Capacity: 2.5 tons / 5,000 lbs.
- Choker Capacity: 1.9 tons / 3,800 lbs.
- Basket Capacity: 5 tons / 10,000 lbs.
- Diameter: 1/2"
| SKU | SW1-E-EH-12-10 |
|---|---|
| Shipping weight | 10.09 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 2.5 tons / 5,000 lbs. Angled Basket Hitch |
| 45 Degree Capacity | 3.6 tons / 7,200 lbs. Angled Basket Hitch |
| 60 Degree Capacity | 4.4 tons / 8,800 lbs. Angled Basket Hitch |
| Vertical Capacity | 2.5 tons / 5,000 lbs. |
| Choker Capacity | 1.9 tons / 3,800 lbs. |
| Basket Capacity | 5 tons / 10,000 lbs. |
| Grade | EIPS |
| Diameter | 1/2" |
| Length | 10' |
| Core | IWRC |
| End Fitting | Eye Hook & Standard Eye |
| Material | Bright Steel Wire Rope |
| Product Weight | 10.09 lbs. |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Additional Info | Eye dimensions: 4"W x 8"L Rated capacities for basket hitch based on a D/d ratio of 25 3 ton carbon steel hook |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
