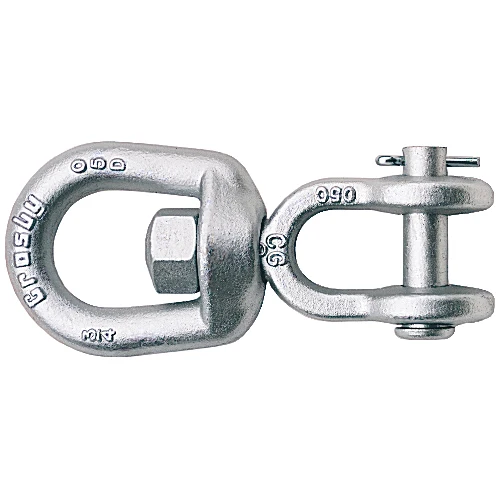

Crosby® 1" Jaw End Swivel - G-403
The Crosby® 1" Jaw End Swivel - G-403 is part of our Crosby G-403 Jaw & Eye Swivel line in the Connecting Links department. It is rated with a working load limit of 12,500 lbs. and a break strength of 62,500 lbs. Construction: hot dip galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 12,500 lbs
- Assembly Break Strength: 62,500 lbs.
- Diameter: 1"
| SKU | JESWIVEL1-CR |
|---|---|
| Shipping weight | 9.84 lbs |
| Working Load Limit (lbs.) | 12500 |
| Assembly Break Strength | 62,500 lbs. |
| Safety Factor | 5:1 |
| Diameter | 1" |
| Finish | Hot Dip Galvanized |
| Product Weight | 9.84 lbs. |
| Standards | Meets or exceeds ASTM A957 & ASME B30.26 requirements. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1016536 |
