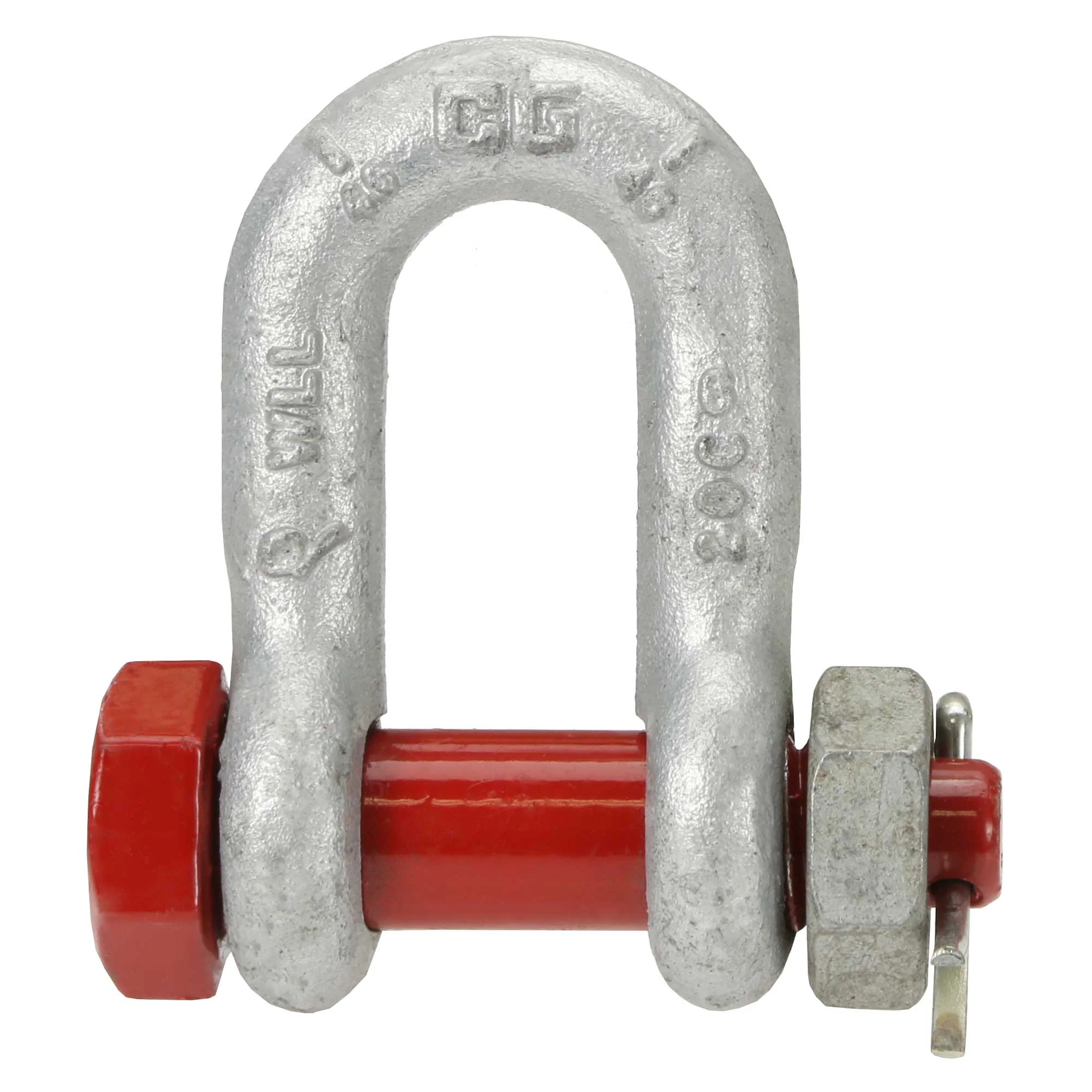

1 / 6 2" Crosby® Bolt Type Chain Shackle | G-2150 - 35 Ton
The 2" Crosby® Bolt Type Chain Shackle - G-2150 - 35 Ton is part of our Crosby (G-2150) - Bolt Type Chain Shackles line in the Shackles department. It is rated with a working load limit of 77,161 lbs. Construction: Carbon Steel Shackle Alloy Steel Pin with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 77,161 lbs
- Inside Width: 3.25"
- Mouth Width: 3.25"
| SKU | BTCS2-CR |
|---|---|
| Shipping weight | 46.8 lbs |
| Working Load Limit (lbs.) | 77161 |
| Safety Factor | 6:1 |
| Inside Width | 3.25" |
| Inside Height | 6.82" |
| Mouth Width | 3.25" |
| Shackle Size | 2" |
| Pin Size | 2-1/4" |
| Material | Carbon Steel Shackle Alloy Steel Pin |
| Finish | Galvanized |
| Type | Bolt Type Chain |
| Product Weight | 46.8 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1019971 |
| Additional Info | WLL (tons): 35 |
