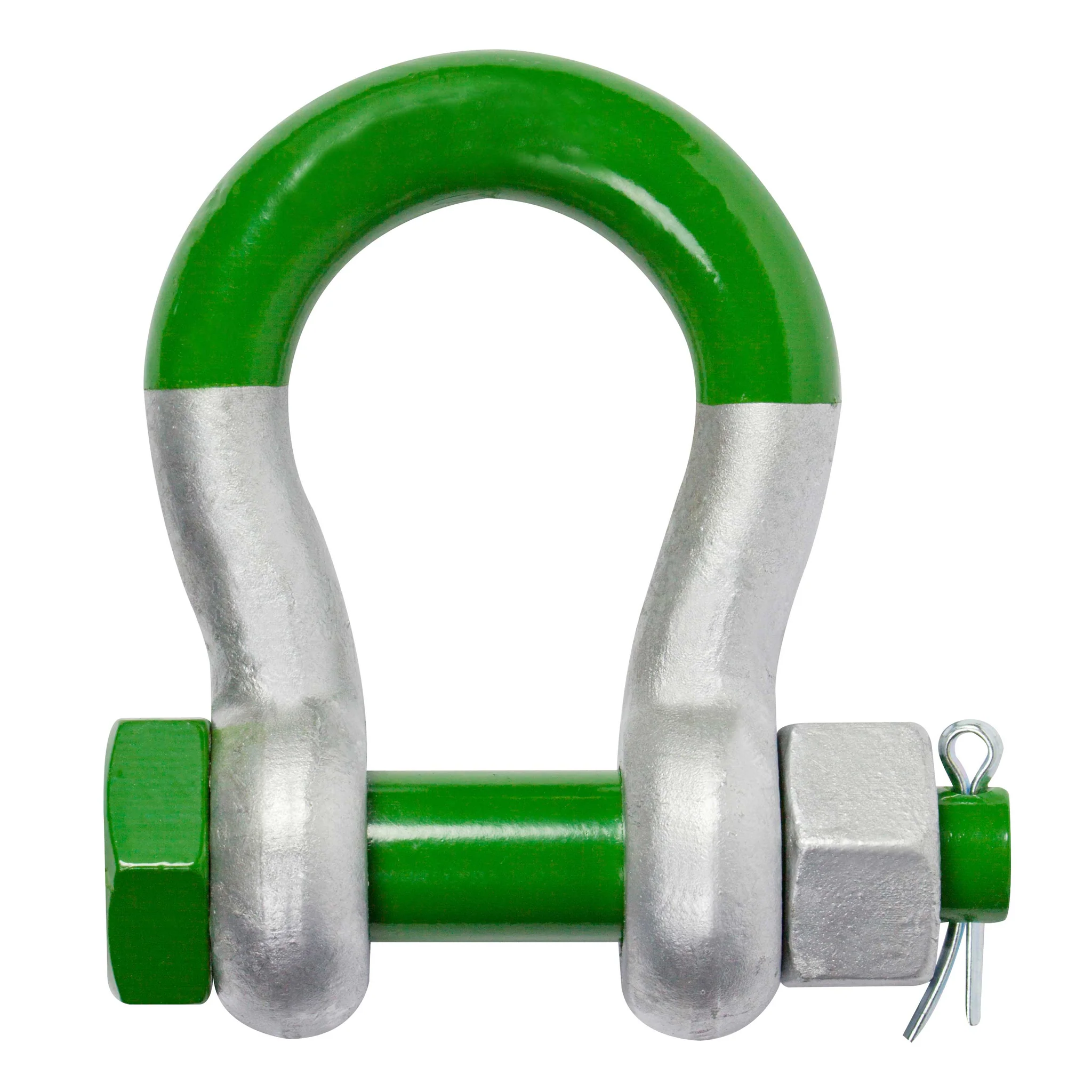

1 / 6 1-3/4" Van Beest Green Pin® Bolt Type Anchor Super Shackle | G-5263 - 40 Ton
The 1-3/4" Van Beest Green Pin® Bolt Type Anchor Super Shackle - G-5263 - 40 Ton is part of our Van Beest Alloy Bolt Type Bow Shackles line in the Shackles department. It is rated with a working load limit of 88,184 lbs. Construction: Alloy Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 88,184 lbs
- Inside Width: 4.97"
- Mouth Width: 2.91"
- Material: Alloy Steel
| SKU | ABTASS1-34-VB |
|---|---|
| Shipping weight | 33.07 lbs |
| Working Load Limit (lbs.) | 88184 |
| Safety Factor | 5:1 |
| Inside Width | 4.97" |
| Inside Height | 7" |
| Mouth Width | 2.91" |
| Shackle Size | 1-3/4" |
| Pin Size | 2" |
| Material | Alloy Steel |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 33.07 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Van Beest |
| Brand Part Number | SUGHMB45 |
| Additional Info | WLL (tons): 40 |
